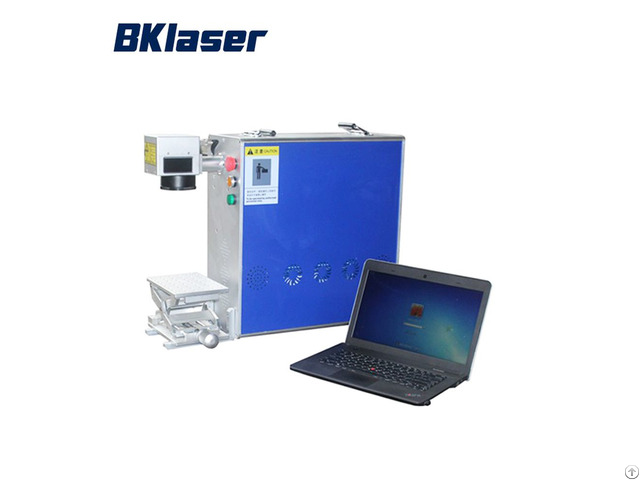

20w Portable Fiber Laser Marking Machine - China

Technical Parameters Model BK-G10BX BK-G15BX BK-G20BX BK-G30BX

Power 10W 15W 20W 30W

Laser wavelength 1064nm

Frequency Range 0-100KHZ

Beam Quality <2 <3

Engrave Line Speed ≤7000mm/s

Minimum Line Width 0.03mm(depends on the material)

Minimum Character 0.3mm( depends on the material )

Repeat Accuracy ±0.003mm

Power Supply 90-260V/50Hz-60Hz

Maximum Height Of Marking Workpiece 100mm(select 170*170mm marking highest 80mm)

Power Consumption 500W

Engrave Depth ≤0.3mm ≤0.5mm

Operation System Windows

Cooling Mode Built in air cooling

Engrave Range Standard 110*110mm

File Formats All fonts in WINDOWS system

Contour Size of The Unit(s) 210*550*750mm

Machine Total Weight 33Kg Characteristics: 1 - Processing speed is 2-3 times the traditional laser marking machine.

2 - Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, small power consumption (less than 800W), the use of low cost.

3 - Integrated pulley design with reasonable design which can be easy to moved, it adapt to a wide

range of factory layout and flexible product laser printing.

4 - It has strong environmental adaptability and it can work continuously under the environment of

shock, shock, dust and humidity.

It is easy to realize the coupling with the optical fiber, and can

realize long distance work.

5 - It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.

6 - Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and

so on, and also can use SHX and TTF fonts directly.
