Adjusted Erw Tube Mill Production Line Energy Saving Blue Color Hg32 - China

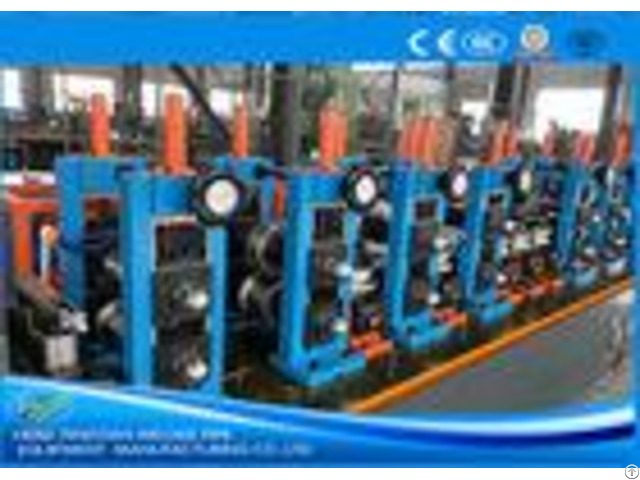

HG32 high precision high speed ERW tube mill production line The mill is used to manufacture of round pipe of 12mm-32mm with thickness of 0.5mm-2.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

Product advantage: # # High precision between level roller jumps 0.01, between frame and slide clearance 0.02, frame vertical degree 0.05, each frame parallel degree 0.1, steel pipe diameter and roundness error0.08 # Use Japanese technology to make foreign clients requirment who need the high accuracy requirement # Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately # The scraping scar can be adjusted 3D adjustment, scraper can along the steel circle 20 rotation.

# Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.

# Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process Scroll up Uncoil Flattening End Shear & Butt Welding Accumulator Forming High-frequency induction welding Removing external burr Cooling Sizing Cutting Checking & Collecting Accessing Warehouse Specifications: 1 - Raw Material 2 - Production Range: 3 - H.F. Welder: GGP150Kw Solid State High Frequency Welder 4 - Line Spees: Max.

120m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 3mm 7 - Electric installed capacity: appro.

300KW 8 - Size of whole line: about 50X5m As an CE & ISO9001: 2008 certified pipe making machine manufacturer and supplier in China.

Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other nearly 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.
