Carbon Steel Construction Formwork Accessories Concrete Four Strut Coil Ties - China

Concrete Four Strut Coil Ties For Construction Formwork Accessories Description Of Coil Tie: Four Strut Coil Ties For Construction Formwork Accessories, used with tie rod together, is our new product.

It can save steel material.

And also have high strength.

Other size is available in special or custom variations to meet a particular need.

There are 4 struts welded to the coil with length from 6" 8" 10" 12", the coil diameter are available at 1/2" 5/8" 3/4" 7/8" 1" 1 1/4", the coil tie is fixed to the coil rod then put into the concrete lifting panel Advantage: 1 - Can be utilized in many situations when it is not required that the end's of the tie be back away from the face of the wall 2 - Widely versatile and economic to use 3 - Struts fabricated from medium carbon steel wire 4 - Helix coils are electrically weld to the struts resulting in a consistently safe weld 5 - SWL based on 1/2' setback from face of concrete 6 - there are two strut and four struts, six struts coil tie forming tie used for construction formwork accessories Production Machinery - - - - Machine name | Quantity | Machine name | Quantity | Punching Machine | 30 | Threading Machine | 6 | Pressing Machine | 10 | Spring Making Machine | 6 | Lathe | 30 | Bending Machine | 5 | Plate Shearing Machine | 10 | Molding Machine | 5 | Plasma Cutting Machine | 5 | Point Welding Machine | 6 | Row Drilling Machine | 6 | | | Tensile Testing Machine | 2 | Hardness Tester Machine | 2 | - - - - - - - - Production Capacity | Production Line Capacity | 590 Tons / Month | Actual Units Produced (Previous 12 months) | 3, 710 Tons | Capacity/Month | 30 containers | - - - - Four Strut Coil Ties For Construction Formwork Accessories Company Introduction: Qingdao New Taosheng is a professional manufacture and have been involved in the concrete and precast industry since 1995, and always to provide the cost competitive lifting and fixing construction hardware and systems with high safety and quality .

We have improved our team and strict quality control system backed ISO9001-2000 quality assurance system .

And we are auditing TS16949 .

With over 10 years experience, we ensure that your next project is managed and supplied with the best lifting products and solutions.

And we are the supplier of the leader concrete company from USA, Germany, England, Australia and middle East after pass the inspection by them Sizes: - - - - Bolt Dlameter | SWL Tension | Height (c) | Coil Length (B) | Wire Diameter(D) | Length(A) | Min Edge Distance | In | Ib | In | In | In | In | In | 3/4 | 9000 | 1-5/8 | 1-3/4 | .

375 | 6 | 8 | 1 | 18000 | 2-1/4 | 2-1/16 | .

440 | 6 | 8 | 1-1/4 | 36000 | 2-1/2 | 2-1/16 | .

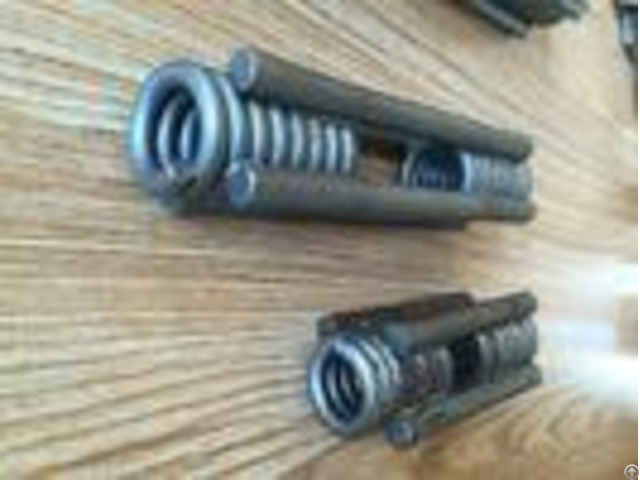

440 | 8 | 10 | - - - - Here are the Pictures of coil ties: all of the coil tie, coil insert, forming tie we produced for formwork building concrete
