Cheap Price Small C U Z Roll Forming Machine - China

Cheap price small c u z roll forming machine

small c purlin roll forming machine, small u purlin roll forming machine

Product Application:

This machine is used to make steel C Z shape purlins for buildings.

Many sizes of purlin can be produced on one machine.

The line mainly consist of uncoiler, coil sheet guiding device, flattening device, roll forming system, punching equipment, cutting equipment, hydraulic station, PLC controlling and support table.

We also can produce according to customer's requirement.

Used c z purlin cold roll forming machine is a machine can produce many sizes, Generally, there are three types of machine, c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine.

The Web width can be 60-300mm Flange height can be 30-80mm, it is adjustable from min to max.

The size of holes can be design by customers.

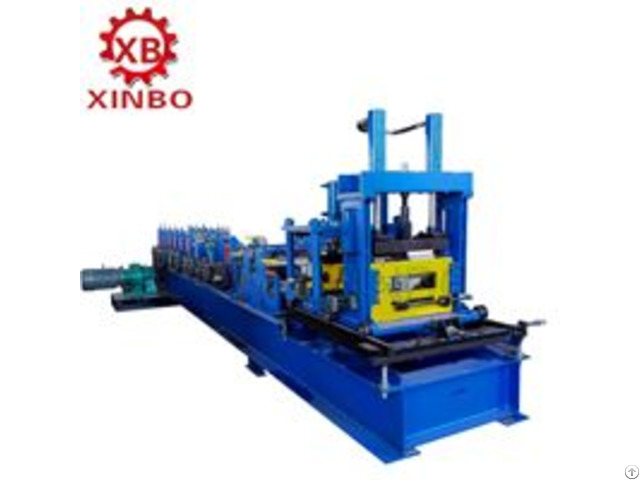

This C Z Used Roll Forming Machine consists of uncoiler, feeding and straightening, punching and cutting part, main roll forming part, cutting device and runout table.

Main Parameter of Roll Forming Machine:

No.

Item

1 - Processing Material： PPGI, GI

2 - Material Width(mm)： 1220

3 - Processing Thickness(mm) ：0.8—3.0

4 - Material of Rollers： 45# steel, with hard chrome coated

5 - Diameter of Shaft: Ф80mm

6 - Production Speed : 8---12m/min

7 - Cutting Model : Hydraulic Profile Cutting

8 - Control Style: PLC

9 - Total Power : 15kw

10 - Operation Model : 380V 50HZ or as buyer's request

11 - The size ：7.5-9m

Main Features

●Feeding platform

●Main molding core

●Hydraulic system

●Automatic shearing system

●Computer control system

●High-precision automatic counter

●Driven system protective covering

●Panel supporting table

Machine Parts

Name: Hydraulic Station

It is controlled by gear wheel oil pump.

After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Main Features

Name: Computer Control Cabinet

It adopts MITSUBISHI PLC to control.

The target piece`s length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one.

The system is easy to operate and use.
