Cone Plate Rolling Machine - China

If you are in the field of sheet metal, you may often meet reuqest for steel cone fabrication.

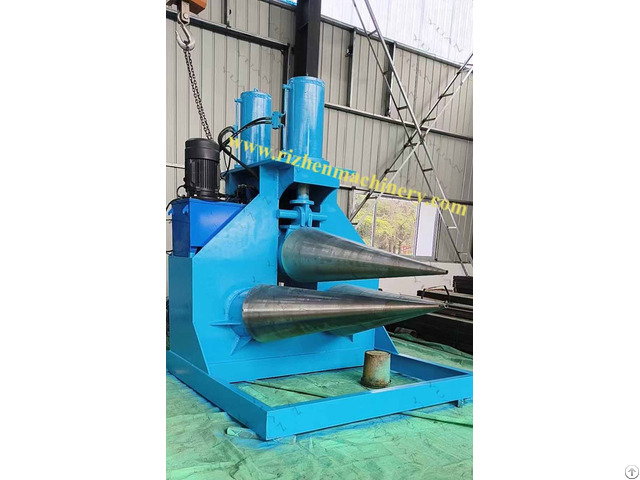

A conical plate bending machine, also known as a cone rolling machine or cone bending roll, is a specialized type of machine used in metalworking and fabrication to form conical shapes from sheet metal or plate material.

sheet metal cone roller is particularly useful in industries where components with conical shapes, such as cones, transitions, or sections of pipes, are required.

The process involves bending the metal along its length to achieve the desired conical form.

The sheet metal cone rolling machine has high predion for making conical products.

Hydraulic 3 rollers rolling machine and hydraulic 4 rollers rolling machine with special tool can also make cone.

But it is low output.

If you need to produce a mass of cones a day, choosing the cone plate rolling machine is efficient.

The sheet metal cone roller bending machine has the fuction both for pre-bending and cone rolling.

Sheet metal cone rolling machine has basis, turndown device, fixed side device, cone rollers, driven device, lower roller raise and drop device, hydraulic system and electric system.

Feature: 1 - There are three working motors, all of which rotate synchronously and actively, and are selectesheet metal cone rolling machined according to 1.2 times the rated load.

2 - Three cycloidal pinwheel reducers, selected according to 1.5 times the rated load.

3 - The connection between the reducer and the shaft is installed with a shaft, the machined surface and coaxiality are precise, and the coupling is not hard-connected, so the reducer is not easily damaged.

4 - The roller surface is made of No.

45 steel and is conventionally high-frequency quenched.

5 - Maximize the diameter of the shaft head and select the bearing according to 2.5 times the rated load.

6 - The conventional control is to move the handle.

7 - The hydraulic station is equipped with a double solenoid valve, an electromagnetic relief valve and an axial piston pump.

8 - The hydraulic cylinder should be selected based on twice the rated load at 25MPA.

What machines can roll sheet metal plate cone? Is cone rolling becoming a nightmare for you?Rolling cones is a very complex task.

Hydraulic 3 rollers rolling machine and hydrualic 4 rollers rolling machine with auxiliary tools can produce steel cones.

But the production is not big.

With our cone making machine you can rasie your production and also rolling cones with precision.

Versatility: Cone plate bending machines are versatile and can handle a range of materials, including various metals and alloys.

They are commonly used in industries such as metal fabrication, aerospace, and manufacturing, where conical components are essential.
