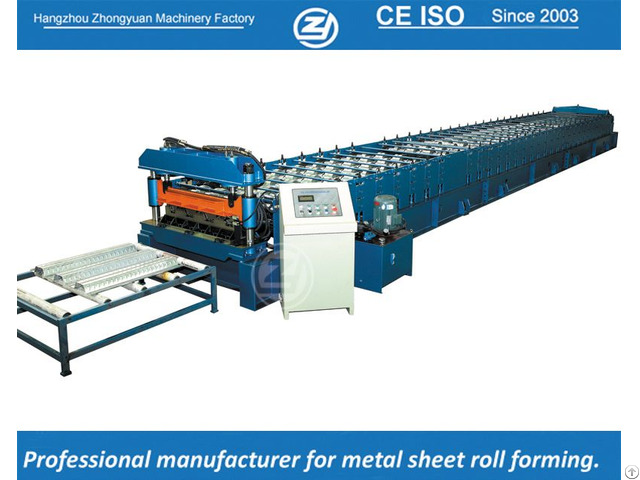

Decking Roll Forming Machine

Technical Data of Decking Roll Forming Machine

Suitable material Q235 color steel sheet;0.8-1.2mm, Forming speed about 18-20m/min

Power Requirement Main motor power: 11X2 Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of forming rollers No.

45 steel, plated with chrome on surface.

Material of cutter Cr12 mould steel with quench treatment, HRC58-60 Material of shaft High quality 45# steel with heat treatment.

Roller grinder milling.

Shaft diameter 82mm

Controlling system Mitsubishi PLC & converter

Total weight of machine About 16500KGS

Machine’s size about 26m×1.8m× 1.5m (Depend on final design)

Shipping 1x40GP and 1X20GP containers can load one machine Metal Deck Forming Machine, Metel Floor Forming Machine, Metal Roll Forming Machine China

Product Application: The metal deck produced by floor deck forming machine is used as decking of building; It has high strength with big wave length.

It adheres well to concrete.

Used on high building, it not only saves steel mold plate, but also reduces the weight.

With the same bearing capacity, it economized steel and cuts down investment accordingly.

Metel Floor Forming Machine: Bearings Inside Rollers:

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life.

More important, machine can get more precise sheet because of bearing designing.

roll forming machine, sandwich panel machines, Step Tile Forming Machines China Supplier

Machine Shafts for Rollers

1 - Shaft material is No.

45 steel with diameter 72mm, strong and durable.

2 - Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.

Our Metal Roll Forming Machine's Advantages

1 - Forming speed: 18-20m per minute .

2 - Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

3 - Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

4 - Cutter blade: Cr12 mould steel with quenched treatment, long life time.

5 - High precision: shafts for rollers are tooled by grinding machine at least twice.

Rollers are CNC processed to ensure precision performance.

6 - People originate: introduced Mitsubishi PLC with touch screen.

Friendly man-machine interaction.

7 - Excellent services: Technician can be sent to your factory to install the machine and train your workers.

Lifetime services for our machines

Company Contact:

• Posted By: Hangzhou Zhongyuan Machinery Factory

• Phone: 8657182172966

• Address: No.228, Yongli, Nanyang Street, Xiaoshan District, Hangzhou City, Zhejiang, P. R.of China, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.zhongyuanforming.com

• Business Description: Company Information

  Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

  Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

  We are"All-in-house source" – from raw material to the final high-precision forming machine.

  Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site.

  So we can better control the machine quality and delivery time of machines.

  Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines, etc.

  We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

  Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania, Ethiopia, Gana, Guinea, South Sudan, Algeria, Niger, Philippines，Indonesiaï¼ ŒIndia, Russia, Azerbaijan and Kazakhstan.

  We have rich experience for metal forming machine solution, competitive price and excellent service.

  We will continue to do our best to supply perfect products and service for customers.

  Invite you to contact us for further information
