Desktop Laser Etching Machine For Stainless Steel Three Dimensional 3d Surface Marker - China

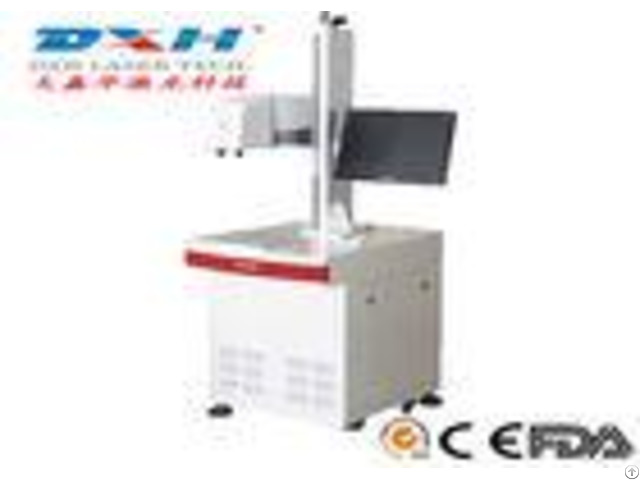

3D Laser Marking Etching Machine(Automatic Laser Marking Machinery) with 3D specified software and control system Can adjust focus length any time for deep engraving Make real 3D (three-dimensional)markin g Product Description 3D Fiber Laser Marking Etching Machine General Description: 3D Autofocus fiber laser etching marking machine adopt imported core components, with high-speed, high-precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem.

It can also adjust focus length any time for deep engraving, which makes process efficiency and marking quality much better than traditional 2D fiber laser marking etching machine.

We make real 3D (three-dimensional)markin g etching function come true, leading a new era of laser processing.

- - - - - - - - Technical Specifications | Laser Type | Fiber laser/Co2 laser | Wave Length | 1064nm | Output Power | 20W 30W 50W | Optical Quality | M2<1.2 | Pulse Repetition Frequency | 10kHz~200kHz | Cooling Type | Air Cooling | Focusing Lens | Standard/Optional | Processing Range | 140*140*60mm/160*160*70mm /Customization | Focal Length | 200mm 254mm | Plane Highest Processing Speed | 6m/s | Z Axis Highest Processing Speed | 4m/s @45 | Min Line Width | 150m | Positional Accuracy | 25m | Registration Accuracy | 20m | Operating Ambient Temperature | 18~28 | Electric Power Requirement | Single Phase AC220V 10A Three Phase AC380V 10A | Machine Power | 3KW | Boundary Dimension(W*L*H) | Main Machine: 1200*1000*1610mm | Exhaust Gas Device: 680*650*1550mm | Weight | Main Machine: 350kg | Exhaust Gas Device: 100kg | - - - - | - - - - 3D laser engraving machine Pre-Sale and After-Sale Services: Pre-sale Service 1 - Welcome to send sample material to us for testing laser engraving marking effect for you.

2 - We offer pictures, videos and other relevant documents for you to know more about the machine.

3 - We are online and would respond fast to answer all your questions.

4 - If you have chance visiting China, you are warmly welcome to visit our factory.

After-sale Service 1 - The whole 3D laser engraving machines warranty is 1 year.

Any parts have a quality problem during the warranty period, We will send you a new replacement for free.

And Customer affords the replacement shipping cost.

2 - The training video, detailed manual, and catalog sent with the machine.

The customer could study the operation of the machine by watching the clear training video.

And the use of 3D laser engraving marking machine will be very easy.

3 - If there is a technical problem or new inquiry, Mactron has a fast response to service support by online or email even if need by the phone call.

4 - Professional technical support and after sales following up.

A free software update.

3D laser engraving machine FAQ: 1) What are the primary products of your company? Our primary products include laser engraving machine, laser marking machine, laser cutting machine, laser welding machine, and laser spare parts.

2) Where is your 3D laser engraving equipment applied to? Our 3D Laser Engraving Machine is suitable for engraving large-scale area object maximum 600 x 600mm, curved mode surface with depth 10mm and deep engraving craving with depth 1mm and so on.

3) What are the advantages of your laser equipment? Our laser equipment has several advantages.

High quality and precision are the featured properties of our laser marking machine.

Our laser engraving marking machine employs the domestic leading Smart Engraving technology, which could clearly engrave 2mm characters and 1mm letters on the materials.

4) How to do control the quality when you produce laser equipment? We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser marking machine.

In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.

5) Which countries are your laser machinery sold to? Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.

3D laser engraving machine Packages: Main Laser Machine Unit x 1 CD of Operation Software x 1 Wood Safety Package Box x 1 Computer system (including monitor) x 1 Warranty: 1 Year.
