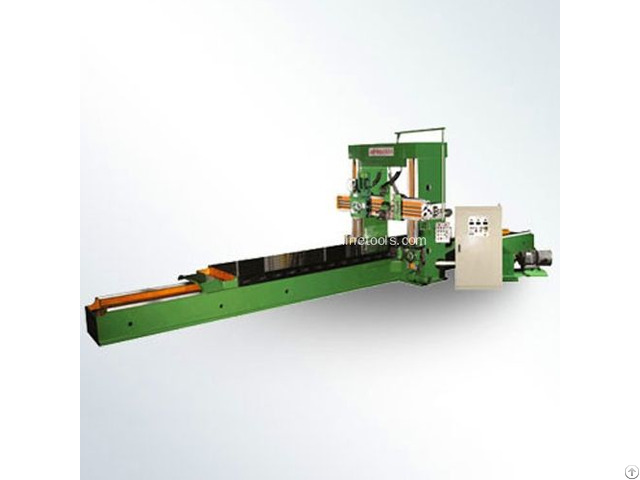

Double Column Planer Type Milling Machine - China
price: 90000.00 Dollar US$
Technical parameters of CNC Gantry Planer Milling Machine B2016A
Workbench size : Long 4000 mm, 6000mm, 12000mm, 6000mm
Workbench size : Width 1400 mm
Drive motor power (DC) : 55 kw
Speed Range : 4-80 mm/min
T "-slot number : 7
The distance between two columns : 1700 mm
Elevating speed of crossrail : 570 mm / min
Maximum section of planing tool bar : 60×60 mm
Power of main motor : 63.3 KW
Power supply: 400V, 155A
Straightness of machined surface 0.02/1000 mm
Maximum machining dimensions Long: 4000mm, 6000 mm, 12000mm, 6000 mm
Maximum machining dimensions Width: 1600 mm
Maximum machining dimensions Height: 1250 mm
Maximum machining weight: 10000 kg, 15000kg, 2 5000kg, 15000kg
Overall dimensions Long: 9000mm, 13000mm, 25000mm, 13000mm
Overall dimensions Width: 4500 mm
Overall dimensions Height: 3800mm
Total weight of machine : 40000 kg, 46000kg, 72000kg, 49000kg
Company Contact:
- Phone: +86-317-5202090
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China, Hengshui City, Hebei Province, China
- Email:
Published date: July 21, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine, vertical lathe machine , Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.
If interested, please feel free to contact us.
