Duct Compact Line 1 Pipe Making Machine - China

Comifo provides compact lines for small and medium sized duct factories and duct installation contractors.

Compact lines can be either a stand alone system or the start of a complete automatic fabricating system.

It is the starter of duct manufacturers, also it can be taken right to the consctruction site.

Their control systems adopt specific software and realize one person operation, which saves labor cost.

Standard Features:

1 - Twin-motor driven dual-decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)

2 - Straightening/flattening -Air pressure controlled six(6) rolls straightenerNo adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material

3 - Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings or uplift the beading rolls

4 - Accurate PLC control unit, Preset cutting size, touchscreen-easy operate

5 - 0-18m/min feeding speed, fast acting back gauge, 7 seconds per cutting for a 1m length sheet metal Capabilities:

1 - Alternative width for 4(1300mm) or 5(1550) material

2 - Thickness: 18-27ga (0.4-1.2mm)

3 - Shearing tolerance of ±0.5mm

4 - Hydraulic folding diagonal tolerance of ±0.5mm

5 - 0-54FPM (0-18m/min) feeding speed, fast acting back gauge COMPACT LINE I

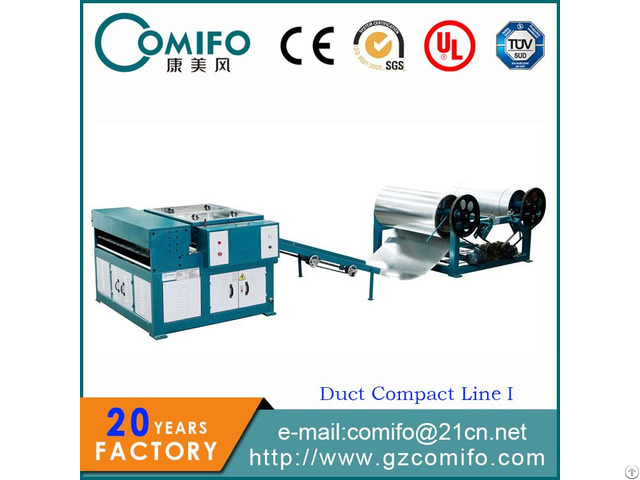

Comifos Compact Line I consists of cradle style decoiler, 6-roller straightener, ring-type beader and hydraulic shearer with optional PE film and slitter.

It processes 4(1300mm) or 5(1550mm) galvanized steel for 18 to 27 gauge (0.4-1.2mm) material into blank for plasma cutting machine.

Company Contact:

• Posted By: Comifo Duct Manufacture Machine Co., ltd

• Phone: +862089817565

• Address: Room 403, East Tower, Jiadu Busines, Guangzhou , Guangdong , China

• Email:

• Website: http://www.gzcomifo.com

• Business Description: Comifo Duct Manufacture Machine Co.,ltd is a subsidiary of Comifo Group, the main duct production line, fire damper production line, plasma cutting machine,lock former machine, flange machine and other air duct processing equipment, the registered capital of 9 million yuan , The factory area of 140,000 square meters, has accumulated nearly 20 years of manufacturing experience, independent research and development production, with 24 national patents, product sales in 128 countries around the world.
