Durable Construction Formwork Accessories Concrete Building Forming Coil Inserts - China

concrete building forming coil insert for construction formwork accessories Product Information # two strut coil insertscan be utilized in many situations when it is not required that the end of the tie be back away from the face of the wall # widely versatile and economic to use # struts fabricated from medium carbon steel wire as Q235 C1045 # helix coils are electrically welded to the struts resulting in a consistently safe weld.

the coil numbers are 6 coil, 8 coil and 10 coils depends on the working load requirement # SWL based on 1/2 setback from fact of concrete # Specifications two strut coil inserts Designed with longer coils that extend beyond the end of the struts.

# - - - - OCM Part No.

Tie Length Box Qty Weight / pcs lbs Safe Working Load lbs CT5004 | 4 | 100 | 0.32 | 4, 500 lbs.

| CT5006 | 6 | 100 | 0.32 | 4, 500 lbs.

| CT5008 | 8 | 100 | 0.32 | 4, 500 lbs.

| CT50010 | 10 | 100 | 0.36 | 4, 500 lbs.

| CT50012 | 12 | 100 | 0.42 | 4, 500 lbs.

| CT50014 | 14 | 100 | 0.466 | 4, 500 lbs.

| CT50016 | 16 | 100 | 0.512 | 4, 500 lbs.

| CT50018 | 18 | 100 | 0.558 | 4, 500 lbs.

| CT50020 | 20 | 100 | 0.604 | 4, 500 lbs.

| CT50024 | 24 | 100 | 0.696 | 4, 500 lbs.

| CT50030 | 30 | 100 | 0.834 | 4, 500 lbs.

| CT50036 | 36 | 100 | 1 | 4, 500 lbs.

| CT50042 | 42 | 100 | 1.1 | 4, 500 lbs.

| - - - - Comments: **1/2" Heavy Duty (6, 750 SWL) available upon request - 4 Strut Available.

**Additional lengths available upon request.

**Waterseal available upon request.

-SWL provides a safety factor of apporoximately 2 to 1 - Customizing is welcome! Qingdao New Taosheng is a professional manufacture and have been involved in the concrete and precast industry since 1995, and always to provide the cost competitive lifting and fixing construction hardware and systems with high safety and quality .

We have improved our team and strict quality control system backed ISO9001-2000 quality assurance system .

And we are auditing TS16949 .

With over 10 years experience, we ensure that your next project is managed and supplied with the best lifting products and solutions.

And we are the supplier of the leader concrete company from USA, Germany, England, Australia and middle East after pass the inspection by them .

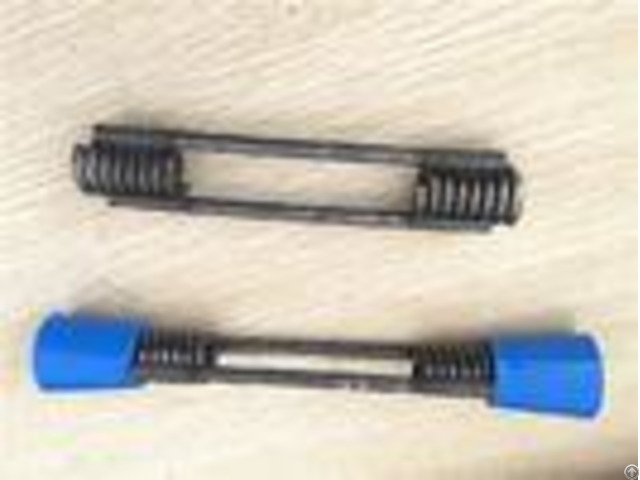

Here are the pictures of formwork coil tie two strut coil ties for concrete forming tie
