Erw60 Industrial Tube Mills Blue Color High Frequency Welding Cold Saw - China

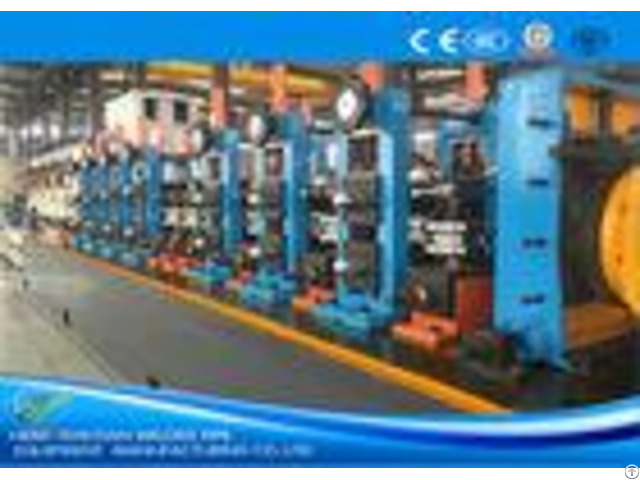

ERW60 high precision steel tube mill line Equipment description ERW60 pipe making machine manufacturer high precision tube mill lineis used to produce building materials pipe, which is widely used for building material, drain and energy supply pipe.

building and decoration profiles, extruded profiles, building profiles, cold bending profiles, etc.

Product precision can reach 0.03 mm (ERW32/ERW50/ERW60), the accuracy of more than ERW76 units range in 0.05 mm.

Product advantage: # # High precision between level roller jumps 0.01, between frame and slide clearance 0.02, frame vertical degree 0.05, each frame parallel degree 0.1, steel pipe diameter and roundness error0.08 # Use Japanese technology to make foreign clients requirment who need the high accuracy requirement # Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately # The scraping scar can be adjusted 3D adjustment, scraper can along the steel circle 20 rotation.

# Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.

# Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process Scroll up Uncoil Flattening End Shear & Butt Welding Accumulator Forming High-frequency induction welding Removing external burr Cooling Sizing Cutting Checking & Collecting Accessing Warehouse Specifications: 1 - Raw Material: HRC, CRC, Galvanised Coil 2 - Production Range: Round Pipe: 19 - 60.3mm; Thickness: 0.6-3.0mm Square Pipe: 15*15 - 50*50mm; Thickness: 0.6-2.5mm Rectangular: 15*20 - 40*60mm; Thickness: 0.6-2.5mm 3 - H.F. Welder: GGP200Kw Solid State High Frequency Welder 4 - Line Spees: Max.

100m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 3mm
