Forged Hex Head Forming Coil Thread Bolts Construction Formwork Accessories - China

forged hex head forming coil bolt for concrete building fasteners DESCRIPTION: Coil Bolts are made from high strength steel 40Cr, and are used with different types of coil thread nuts and coil inserts two strut four strut coil tie in concrete formwork, bridge deck forming, or precast concrete applications.

Features # Standard sizes of 1/2" and 3/4" 1" and 1 1/4" Diameter up to 6" length are readily available # Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork # Special sizes and lenghts can be fabricated upon request Our products Include: # Construction Industry # Concrete Forming Accessories # Waterstop Products # Scaffolding & Shoring Components # Rebar Splicing # Transportation Industry # Heavy and Medium Duty Truck O.E.M.

's # Light & Heavy Duty Trailer O.E.M.

's # Heavy Duty Truck and Trailer Aftermark # # Our company always adhered to the principle of "Customer Supreme, Quality First " approach to our customer.

Our customers spread all over the world in such countries and regions including US, Japan, Europe, Middle East, Sourtheast Asia, Taiwan and so on - - - - 1, Products Detailes | Products | forming coil bolt formwork coil bolt for building fasteners | Size | Standard.

non-standard according to drawing or samples | Machines | auto pressing machines, automatic heading machine, cold header high-precision surface grinder machine, involantary grinder machines, Digital Micro Vickers Hardness tester, Electrolytic metrical thickness gauge, Vision Measuring Machine, Thickness Gauge and so on | Material | 1 - Stainless Steel: SS201, SS303, SS304, SS316, SS410, SS420 | 2, Steel: C45(K1045), C46(K1046), C20 | 3 - Brass: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), | C27200CuZn37), C28000(CuZn40) | 4 - Bronze: C51000, C52100, C54400, etc | 5 - Iron: 1213, 12L14, 1215 | 6 - Aluminum: Al6061, Al6063 etc | 7, .

Carbon steel: C1006, C1010, C1018, C1022, C1035K, C1045 | 8, Alloy steel: SCM435, 10B21 | Surface Finishing | Zn- Plated, Ni-plated, Passivated, Tin-plated, Sandblast and Anodize, Chromate, Polish, Electro Painting, Black Anodize, Plain, Chrome plated, Hot Deep Galvanize(H.

D.

G.

) etc.

| Heat Treatment | Tempering, Hardening, Spheroidizing, Stress Relieving.

| Standard | ISO, GB, DIN, JIS, ANSI, BSW | Manufacture Process | Heading/washer assembly/Threading/Second ary machine/heat treatment/plating/Anti-sl ipping/Baking/QA/Package/ Shipping | Sample | we can supply the samples for free, if the samples we have in stock | Lead time | 10-15 working days as usual, It will based on the detailed order quantity.

| Carton size | 36*24*16 CM &36*24*12 CM | Pallet size | 110*100*90 CM | Warranty | we confirm our goods will satisfy your request of 100%, | After sales service | we will follow up goods for every customer and help solve problem after sales.

| - - - - SIZE: Comments: SWL provides a safety factor of apporoximately 2 to 1 .

- - - - Part No.

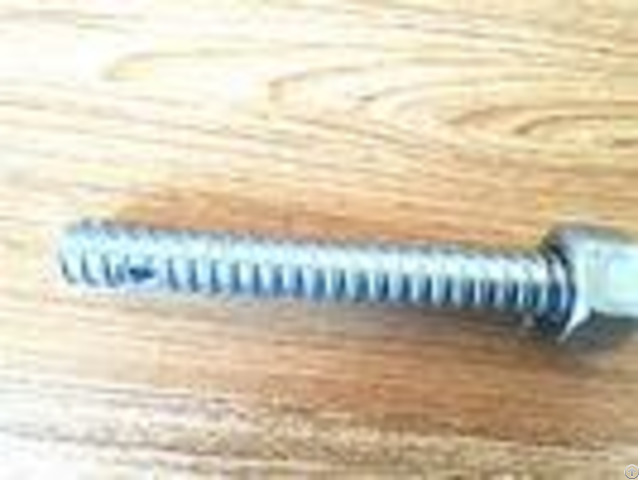

D Size L Length AC Across Flats Carton Qty Weight per 100pcs lbs Safe Working Load lbs N01 | 1/2" | 1-1/2" | 3/4" | 500 | 10.6 | 4, 125 | N02 | 1/2" | 2" | 3/4" | 500 | 12.8 | 4, 125 | N03 | 1/2" | 2-1/2" | 3/4" | 400 | 15.1 | 4, 125 | N04 | 1/2" | 3" | 3/4" | 300 | 17.1 | 4, 125 | N05 | 1/2" | 3-1/2" | 3/4" | 250 | 19.4 | 4, 125 | N06 | 1/2" | 4" | 3/4" | 250 | 21.6 | 4, 125 | N07 | 1/2" | 5" | 3/4" | 200 | 26.3 | 4, 125 | N08 | 1/2" | 6" | 3/4" | 150 | 30.7 | 4, 125 | N09 | 3/4" | 2" | 1-1/8" | 150 | 32.8 | 9, 000 | N10 | 3/4" | 2-1/2" | 1-1/8" | 150 | 39.4 | 9, 000 | N11 | 3/4" | 3" | 1-1/8" | 100 | 42.7 | 9, 000 | N12 | 3/4" | 3-1/2" | 1-1/8" | 100 | 47.8 | 9, 000 | N13 | 3/4" | 4" | 1-1/8" | 100 | 52.5 | 9, 000 | N14 | 3/4" | 5" | 1-1/8" | 75 | 62.5 | 9, 000 | N15 | 3/4" | 6" | 1-1/8" | 75 | 72.4 | 9, 000 | N16 | 5/8" | 2" | 1" | 100 | 21.8 | 7, 500 | N17 | 5/8" | 4" | 1" | 100 | 35.4 | 7, 500 | - - - - Here are the detailed pictures of the coil bolt: The coil thread and head shape in detail view: Other type of formwork coil bolt Packing pictures: first 100pcs put in the plastic bag and then put in carton box .

all boxes on steel pallet HOW TO USE THE COIL BOLT? Details: 1 - Special Screws According to Customer's Drawing 2 - Head Type: According to customer's requirement 3 - Thread Type: According to Customer's requirement 4 - Material: Plastic, Nylon, Steel, Stainless Steel, Brass, Aluminum, Copper 5 - Surface: Zinc Plated, Zinc Yellow, Geomet, JS 500, E-Coating, Hot Dipped Galvanized, Nickle, Brass, Dacromet, Black Oxide, Black Phosphate, and as per customer's request Delivery: 1 - FOB Kaohsiung Port, Taiwan Payment: 1 - T/T & L/C Others: 1 - Sorting: Roller Sorting, Laser Sorting 2 - PPAP III Cert available
