Galvanised Steel Sheet Slitter Cutter Machine With Circular Knife Blade Plc Control - China

price: check with company for price

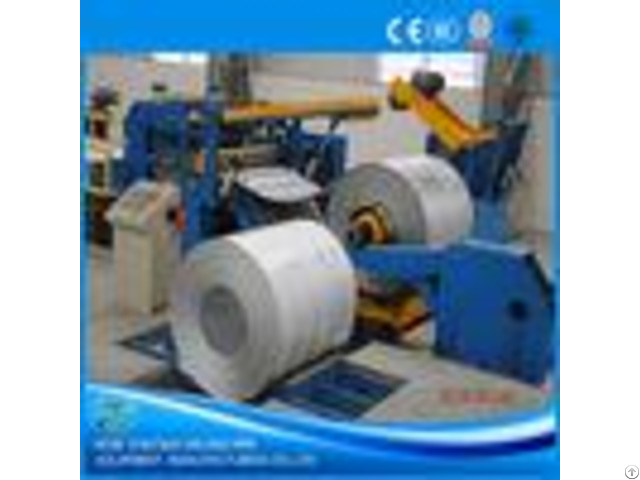

Galvanised Steel Sheet Slitter Cutter Machine With Circular Knife Blade Plc Control

Products Photos Catalog Galvanised Steel Sheet Photos Catalog

High precision semi-automatic Metal Sheet Steel slitting machine Equipment description A slitting line, also called slitting machine, is suitable for unwinding the metal coil into a strip, slitting it into narrower strips of the needed width and recoiling them for sale or the next procedure.

Slitting line can be categorized into thin strip slitting line and thick strip slitting line for the thickness of the strip or copper strip slitting line, silicon steel, stainless steel, aluminum, carbon steel strip slitting line, etc for the material processed.

A slitting line is composed of 1 - Loading coil car 2 - Uncoiler 3 - Straightener device 4 - Pinch roll&leveler & hydraulic shearer 5 - Loop pit 6 - Side guide 7 - Slitter 8 - Transition platform & scrap winder 9 - Loop pit 10 - Tension station 11 - Recoiler 12 - Unloading coil car Hereby take as an example a thin strip slitting line used for the uncoiling, slitting and recoiling of cold-rolled carbon steel, hot galvanized steel strip with thickness range of 0.3-3.0mm and width range of 800-1250mm.

Main technical parameter Material: Cold-rolled, hot-rolled carbon steel, galvanized steel.

Material thickness: 0.3-3.0mm Material width: 800-1250mm Coil I.

D: 508mm/610mm Coil O.

D: 2000mm Coil weight: 20 tons max Narrowest strip width slit into: 25mm (strip thickness1mm) Width cutting precision: 0.05mm(strip thickness1), 0.1mm(strip thickness>1.5mm) Slitting Bur: 0.03minimum, 5% of the trip thickness No.

of slitting: 25no.

(thickness1mm), 12no.

(thickness2mm), 7no.

(thickness 3mm) Line working speed: 150m/min max Total power: Approx.

210kw Slitting line machine is usually be customized according to customer's requirements, As long as you provide parameters and requirements for us, and then we designed for you a suitable machinery equipment scheme.

Below is part of the models designed by Tengtian - - - - Model | Strip Thickness | Strip Width | Coil Weight | Speed | Total power | Area Occupied | (mm) | (mm) | (ton) | (m/min) | (kw) | (m) | TTSL-450 | 0.153.0 | 200-420 | 4 MAX | 0120 | 55 | 13X4 | TTSL-650 | 0.23.0 | 300-620 | 7 MAX | 0120 | 96 | 15X4 | TTSL-850 | 0.33.0 | 300-800 | 8 MAX | 0120 | 100 | 15X5 | TTSL-1350 | 0.36.0 | 300-1300 | 15MAX | 0180 | 230 | 20X8 | TTSL-1650 | 2.08.0 | 600-1600 | 20 MAX | 0120 | 380 | 33X12 | TTSL-2000 | 2.08.0 | 800-1950 | 35 MAX | 0120 | 550 | 37X17 | - - - -


Company Contact:


  • Phone: 86-0311-83025332

  • Address: No.15,Shanqian Road,Economic Development Zone,Hebei,China, Shijiazhang , Hebei , China

  • Email: Email


Published date: May 17, 2018

  • Business Description: Insisting on the principal of "Quality first, Customer first" Our products are selling well in south America, Southeast Asia, Africa, Australia, Russia, South Korea etc.
