Galvanized Angle Anchor Rod Thimble Eye Bolt For Guying Utility Pole - China

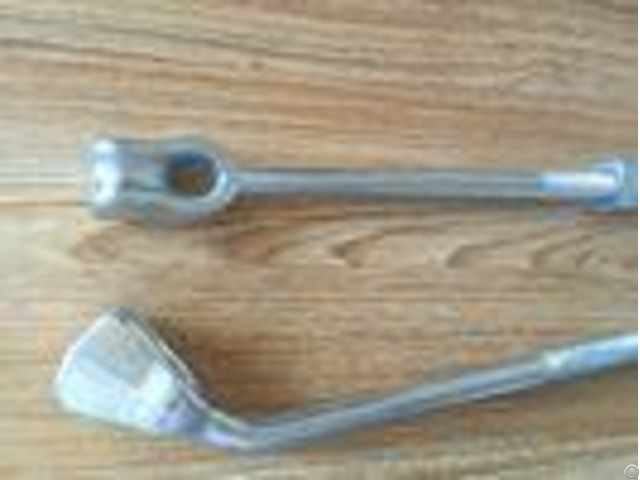

galvanized angle anchor rod thimble eye bolt for guying utility pole Product Description Feature pole line hardware guy adaptor anchor rod # angle anchor rod are available ofThimble Eye, Twin Eye, Triple Eye and Oval Eye # thimble eye bolt is for short type : there are straight eye bolt and angled eye bolt # guy adaptor Anchor Rods are used for guying with expanding and cross plate anchros.

Hot dip galvanized to meet ASTM A153 specification.

# Used for guying utility poles.

# for use with expanding and cross-plate anchors # Contoured to prevent damage to strand.

# Each rod is threaded 3-1/2" minimum length # Minimum tensile strength is 16000 lb.

# All the rods are assembled with a heavy square nut.

# Anchor Rods conform to IEEE Standard C135.2 (1999) and Bell Specification CAO 7082 - # Finish: Hot Dip Galvanized per ASTM A153 # Size: 5/8, 3/4, 1" # Length: 5' 6' 7' 8' 9 '10' - - - - Rod Dia.

| Ultimate Strength | Length (feet) | Thimble Eye | Twin Eye | Triple Eye | 5/8" | 16000lbs | 5 | 5.4 | | | 6 | 6.4 | 6.5 | | 7 | 7.5 | 8 | | 8 | 8 | 8.4 | | 3/4" | 23000lbs | 7 | 11 | 11 | 11.2 | 8 | 12.5 | 12.4 | 12.5 | 9 | 14 | 14 | 14.3 | 10 | 15 | 15.7 | | 1" | 36000lbs | 8 | | 22.9 | 22 | | | 28.4 | 27 | - - - - Here are the pictures details for guy anchor rod thimble eye bolt Forging process of the anchor rods, guy strand anchor rod, straight anchor rod and angle anchor rod thimble eye bolt : Testing strength for anchor rods made in our testing machine Packaging & Shipping 1 - Packaging: 5pcs per bundle, 100 bundles per pallet .

each layer will have wood insert Each anchor rod will fix with one square nut 2 - Shipping: 30 days after confirming your order.

Quality Factors: 1 - Tensile Strength Test is necessary for each batch.

Detailed test report and pictures can be provided after order placed.

2 - Dimensional tolerance, zinc finish, painting finish are also tested according to customers' different requirements.

3 - Products' weight is under a reasonable tolerance.

4 - Each parts dimension is always recorded according to the technical drawing and international tolerance standard.

5 - Hardness testing is Available if you prefer.

6 - Salt spray testing is for customers with the most strict quality control requirement, pls pay attention, this testing needs extra testing charges.

7 - Chemical anyalisis is rare very much from customers' requirements, can be provided, also needs extra testing charges.

8 - Any other testing requirements, feel free to let us know.

Will always do as we can to support your business.
