Galvanized Steel Tube Mill Machine 5mm Thickness Pipe With Innovative Design - China

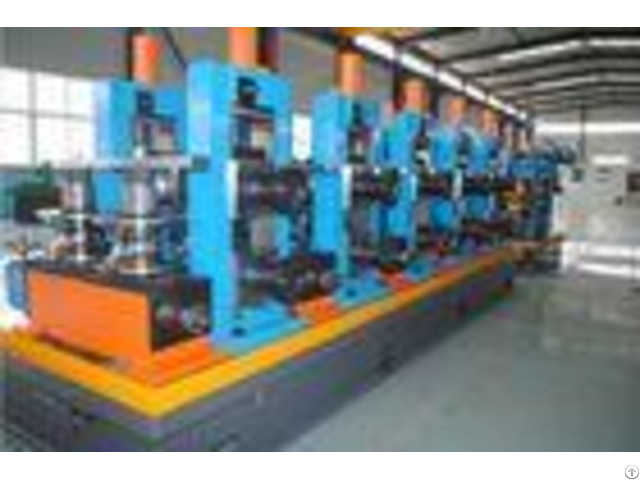

High frequency tube mill machine max.

140mm with 5mm thickness High frequency tube mill machine max.

140mm with 5mm thickness is used to manufacture welded steel pipe of 76mm-168mm with 2.0mm-6.0mm of wall thickness, can produce profiled pipe also within the limit of processing round pipe.

After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Product advantage: # # High precision between level roller jumps 0.01, between frame and slide clearance 0.02, frame vertical degree 0.05, each frame parallel degree 0.1, steel pipe diameter and roundness error0.08 # Use Japanese technology to make foreign clients requirment who need the high accuracy requirement # Schedulable use the worm gear and worm adjustment, the adjustment precision is high, energy accurately # The scraping scar can be adjusted 3D adjustment, scraper can along the steel circle 20 rotation.

# Round become square is Turkish head push square, can reduce mold weight, forming stable, uniform R Angle.

# Level up shaft increase nylon damping block, reduce the impact to the shaft and bearing.

Production Process Scroll up Uncoil Flattening End Shear & Butt Welding Accumulator Forming High-frequency induction welding Removing external burr Cooling Sizing Cutting Checking & Collecting Accessing Warehouse Specifications: 1 - Raw Material - - - - 1 | Mateairal applcaition | Hot or cold rolled steel strips, galvanzied steel strips | 2 | Material grade | Low-carbon steel, low alloy steel: s345Mpa | 3 | ID of the steel strips | 450-508mm | 4 | OD of the steel strips | 800-2000mm | 5 | Coiler weight | Max.

1000kg | - - - - 2 - Production Range: - - - - Round Pipe | 50 - 140mm | Thickness: 2.0-4.0mm | Square Pipe | 40*40 - 110*110mm | Thickness: 2.0-3.0mm | Rectangular Pipe | 50*30 - 100*150mm | Thickness: 2.0-3.0mm | - - - - 3 - H.F. Welder: GGP300Kw Solid State High Frequency Welder 4 - Line Spees: Max.

70m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 1mm 7 - Electric installed capacity: appro.

800KW 8 - Size of whole line: about 90X8m As an CE & ISO9001: 2008 certified pipe making machine manufacturer and supplier in China.

Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.
