Heavy Duty Welded Pipe Production Line For Large Diameter Pipes 800mm Coil Width - China
price: check with company for price

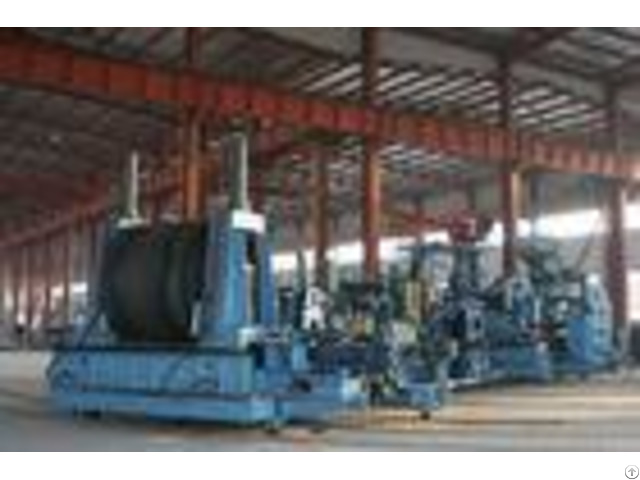

LX-800 Spiral Weld Pipe Production Line 1 - Introduction 1 - Spiral welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder.
Large diameter pipes can be produced with narrow steel strip.
2 - Function For liquid delivery: water supply& drainage; For gas delivery: coal gas, steam and LPG; For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.
3 - Process flow Feedinguncoilinglevelings hearing& butt weldingrotary shearedge millingmain drivepre-bend& guide boardforminginside weldingoutside weldingcutting offpull outend-facing& bevelinghydrotestingcolle ction Spiral Welded Pipe Mill - - - - Series | Min Pipe O.D. | Max Pipe O.D. | Min Thickness | Max Thickness | Coil width | Max Production capacity | Area | | mm | mm | mm | mm | mm | ton/year | m2 | LH600 | 219 - 508 | 325 - 820 | 2 - 4 | 4 - 10 | 400 - 600 | 8000 - 12000 | 2096 | LH800 | 219 - 508 | 406 - 1220 | 2 - 4 | 4 - 12 | 400 - 800 | 9000 - 17000 | 2096 | LH1050 | 219 - 508 | 630 - 1620 | 2 - 4 | 4 - 14 | 450 - 1050 | 16000 - 23000 | 24108 | LH1250 | 406 - 610 | 820 - 1620 | 3 - 6 | 8 - 18 | 500 - 1250 | 26000 - 35000 | 24108 | LH1550 | 406 - 610 | 1420 - 3200+ | 3 - 6 | 12 - 25.4+ | 500 - 1550 | 36000 - 76000 | 26125 | LH2000 | 406 - 610 | 2020 - 3200+ | 4 - 6 | 20 - 25.4+ | 1000 - 2000 | 77000 - 93000 | - - - -
Company Contact:
- Phone: 86-0311-83025332
- Address: No.15,Shanqian Road,Economic Development Zone,Hebei,China, Shijiazhang , Hebei , China
- Email:
- Website: https://www.erwpipemill.com
Published date: May 17, 2018
- Business Description: Insisting on the principal of "Quality first, Customer first" Our products are selling well in south America, Southeast Asia, Africa, Australia, Russia, South Korea etc.
