Round Shape Tube Mill Machine Friction Saw Cutting Automatic Function - China

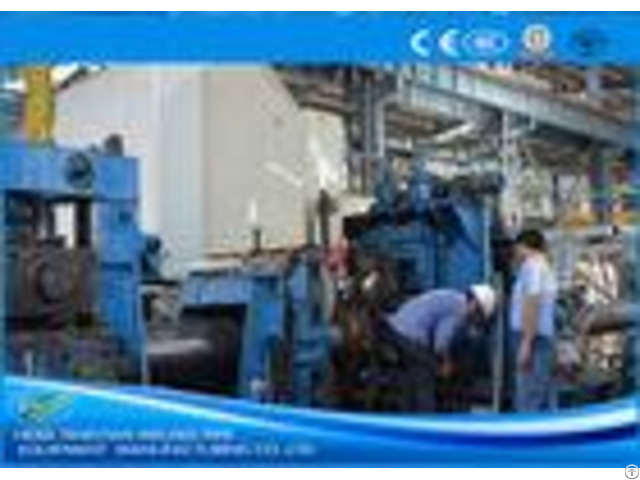

ERW254 API high precision tube mill making machine for Oil and Gas Forming and sizing units uses combination of FF forming and FFX forming to produce steel pipes through HF induction welding.

Heating method uses HF induction or contact welding, i.e. steel pipe fed into the mill is formed into pipe profile by forming rolls.

With skin effect and proximity effect of high frequency current, induced electricity is concentrated onto the bonding surface of the pipe profile fringe to heat it up quickly to welding temperature, and finishes pressure welding when pipe fringes squeezed together by squeezing roll.

After normalizing, cooling, sizing and primary straightening, steel pipe of desired size is produced.

Advantage of the line: More shared rolls, easy adjustment, high quality weld seam, sturdy machine frame, easy operation and maintenance.

API model mainly produces high level steel pipes, such as delivery pipe of petroleum and natural gas, oil well casing and so on.

The requirements for material and quality are very strict.

The mill is equipped with section equipment and technological equipment, such as IF annealing, air-cooled roll table, ultrasonic inspection, high pressure hydraulic pressure testing machine and so on.

Specifications: 1 - Raw Material - - - - 1 | Mateairal applcaition | Hot rolled steel strips | 2 | Material grade | X42, X50, X60, X65, X70, J55, N80 | 3 | ID of the steel strips | 450-508mm | 4 | OD of the steel strips | 800-2000mm | 5 | Coiler weight | Max.

2000kg | - - - - 2 - Production Range: - - - - Round Pipe | 89 - 254mm | Thickness: 2.0-10.0mm | - - - - 3 - H.F. Welder: GGP600Kw Solid State High Frequency Welder 4 - Line Spees: Max.

40m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 3mm 7 - Electric installed capacity: appro.

2000KW 8 - Size of whole line: about 100X10m Line composition : Hydraulic loading car Hydraulic double end uncoiler Head debender and straightener shear and weld machine Spiral accumulator Egde milling machine Forming and sizing unit Hydraulic system 1000kW solid state high frequency Electric control part and full line electric interlocking Full line hydraulic system PC milling saw End cropper Hydrostatic testing machine Conveyor roller table and air cooling roller table Inline weld seam annealing equipment KGPS-TH600KW Eddy-current tester, off line flaw detector, steel sheet ultrasonic flaw detector As an CE & ISO9001: 2008 certified pipe making machine manufacturer and supplier in China.

Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.

Production Process
