Solar Industry Roll Forming Machine For Sale - China

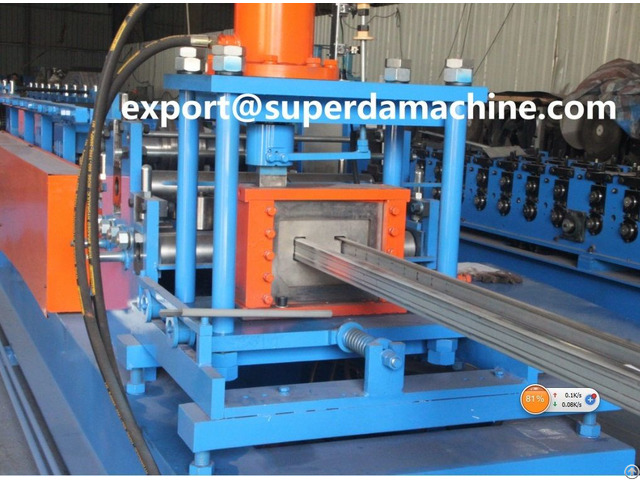

Solar structure panel roll forming machine new design

Roll forming machine for producing solar panel mounting bracket, including solar photovoltaic bracket, solar pv support machine

Solar mounting bracket roll forming machine for production different size solar pv support Main technical parameter: quickly change the type of roll forming machine

Raw material thickness: 2.5mm Forming steps: 26 steps

Roller material: bearing steel after hardening

Roller bearing diameter : Φ90mm

Bearing material: 45# steel (hardening and tempering)

Bottom sheet: 36# H-section steel

Main machine power: 18.5 KW

Hydraulic pressure: 20 MPa

Electronic control system: PLC computer control

Hydraulic cutter material: Cr12

Length error: ± 2mm Item YX50-300 Solar mounting bracket roll forming machine for producing solar industry support using bracket.

Solar bracket application

Solar bracket allows the components to be angled according to different regions, so that the local solar energy resources can be fully utilized to achieve the maximum power generation efficiency of the solar modules.

At the same time, the detailed analysis and practice of the connection mode, material selection and load analysis of the PV module are carried out, so that it has good physical properties such as earthquake resistance, wind resistance, snow pressure resistance and corrosion resistance, so that the PV module is applied more.

A wide range of areas.

Main material: Q195 Q195L Q235 Q235B Q345B, etc.
