Welded Industrial Tube Mills Galvanised Steel Production Line 70m Min Running Speed - China

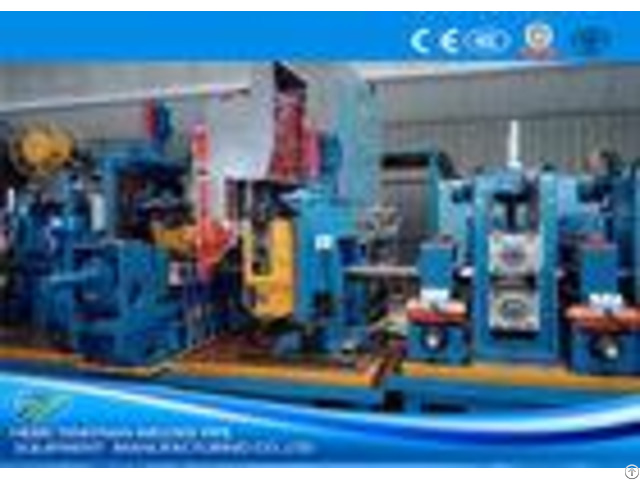

ERW114 High Precision Steel Tube Mill Production Line Highfrequency welded tube mill line is Designed to produce round tube diameter of 38 114mm, And wall thickness of 1.2 5.0 mm.

This line utilizes roll forming to process steel strip into various shapes.

Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape.

The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speedregulating unit ensure that the production line works reliably and operates and maintains easily.

Production Process Scroll up Uncoil Flattening End Shear & Butt Welding Accumulator Forming High-frequency induction welding Removing external burr Cooling Sizing Cutting Checking & Collecting Accessing Warehouse Specifications: 1 - Raw Material: HRC, CRC, Galvanised Coil Steel Coil: Inner diameter: 470-510mm Outer diameter: max=1500mm Strip steel width: 120mm-360mm Strip steel thickness: 1.2mm-5.0mm The maximum weight: 5 tons 2 - Production Range: Round Pipe: 38- 114mm; Thickness: 1.2-5.0mm Square Pipe: 30*30-90*90mm; Thickness: 1.2-4.0mm 3 - H.F. Welder: GGP400Kw Solid State High Frequency Welder 4 - Line Spees: Max.

70m/min 5 - Tube Length: 4-12m 6 - Cutting Accuracy: 2mm 7 - Total Installation Capacity: 750kw 8 - Dynamic power: AC380V10%, 3phases, 50Hz1.0% 9 - Cooling water Reservoir for High Frequency equipment: 25m, one set Reservoir for circulating cooling water: 20m, one set 10 - Compressed air Pressure: 0.4Mpa Flow: 2.0m3/h As an CE & ISO9001: 2008 certified pipe making machine manufacturer and supplier in China.

Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other nearly 30 countries.

If you have any interested here, please don't hesitate, we are here happy to assist you.

Company Contact:

• Posted By: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.

• Phone: 86-0311-83025332

• Address: No.15,Shanqian Road,Economic Development Zone,Hebei,China, Shijiazhang , Hebei , China

• Email:

• Website: https://www.erwpipemill.com

• Business Description: Insisting on the principal of "Quality first, Customer first" Our products are selling well in south America, Southeast Asia, Africa, Australia, Russia, South Korea etc.
