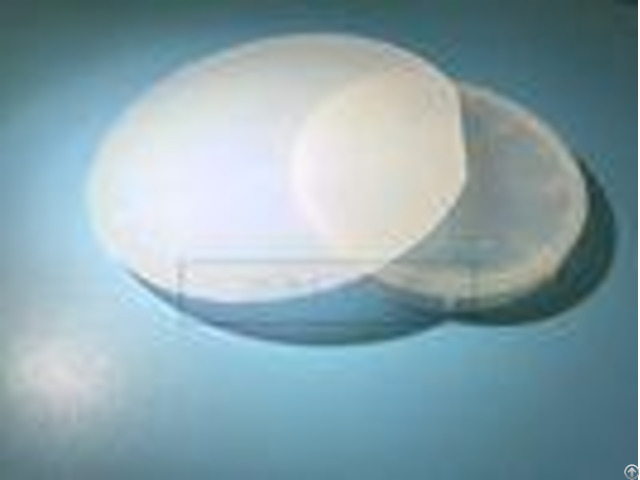

A Axis 4 Inch Sapphire Optical Windows 85 Percent Vision Light Transmissivity - China

4inch A-axis sapphire wafer for epi-ready, sapphire thick glass lens for covering, sapphire optical windows, 2INCH 6inch A axis, random orientation sapphire wafer, Sapphire advantagement # -Transmits Wavelengths Ranging From UV to Mid-Infrared # -Thinner and Stronger than Standard Glass Windows # -Features Extreme Surface Hardness and Chemical Resistance # Low and High temperature can be used in Product Description: Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal properties, excellent electrical characteristics and dielectric properties, and anti-chemicalcorrosion, it is high temperature, thermal conductivity, high hardness, infrared transparent, chemically stable good.

Widely used in high-temperature infrared window materials and III-V nitride epitaxial film substrate and a variety of materials to meet the growing blue, purple, white light-emitting diode (LED) and blue laser (LD) needs, Branch Crystal company specializing in the production of high quality polished sapphire crystal and epitaxial substrates will provide you with a lot of high quality and low price monocrystalline substrate.

We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

Applications Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball 1sapphire lens-->2color sappphire-->3sapphire windows--->sapphire watch case --->sapphire optical plate -->sapphire lens ---rough sapphire for scan window--->sapphire laserblocks lens--- step lens ---color sapphire for watch glass 4inch A-plane specification # Material: Single crystal Al2O3 99.999 # Orientation: A-plane(11-20) Off M -axis 0.20.1 # (11-20) - a plane: 2.379, (1-102) - r plane: 1.740 # (10-10) - m plane: 1.375, (0001) - c plane: 2.165 # Diameter: 100.000.1mm # Thickness : 65025um or 50025um # Primary flat: 311mm # Cleanliness : Free visible contamination # OFOrientation flat: Caxis0.1 C-plane(0001) # Frontside Surface Roughness: Ra0.2nm # Backside Surface Roughness: 0.8~1.2um # ( Or double side polished, both side Ra0.2nm) # TTV: 15um # BOW: -15~0um # WARP: 20um # Laser Mark Series No.

by needs # Package: Vacuum-sealed containers in a class 100environment # Produce step for sapphire crystal to sapphire wafer Sample Our services 1 - Factory direct manufacture and sell.

2 - Fast, accurate quotes.

3 - Reply to you within 24 working hours.

4 - ODM: Customized design is avaliable.

Welcome.

5 - Speed and precious delivery.

FAQ Q1: Are you a factory or trading company ? A: We are trading company but have a sapphire factory in wuxi city of China.

Q2: Where is your factory located ? How can i visit there ? A: It is located in wuxi city ofJiangsu, China.

warmly welcome to visit us! Q3: Are there any stock or standard products? A: Yes, we have IPL windows with sapphire substrates as like 2-4inch wafer.

Other sizes also available from us, please provide the drawing or technical requirements and needed quantity.

Q4: How about the samples policy? A: Free samples, but buyers please bear the freight charge.

For some expensive samples, samples cost could be necessary.

Q5: If i place an order now, how long would it be before i got delivery ? A: It would largely depend on the size of the order and the items you want.

the most quick speedis in 5 days.
