Al2o3 Single Crystal Sapphire Optical Windows Custom Shape With Square Round Hole - China

special shape sapphire optical lens with hole, Al2O3 single crystal glass, optical glass sapphire wafer, sapphire glass plate Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis.

Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance.

Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5m.

Merit from Comparison with other material optical lens 1-Thinner and Stronger than Standard Glass Windows Because Hradeness9.0 2- can use inClose to 2000 temperature environment 3-Transmits Wavelengths Ranging From UV to Mid-Infrared 4-Features Extreme Surface Hardness and Chemical Resistance We can supply professional customized service in time and provide cooperation and support of new product development and technology appliance.

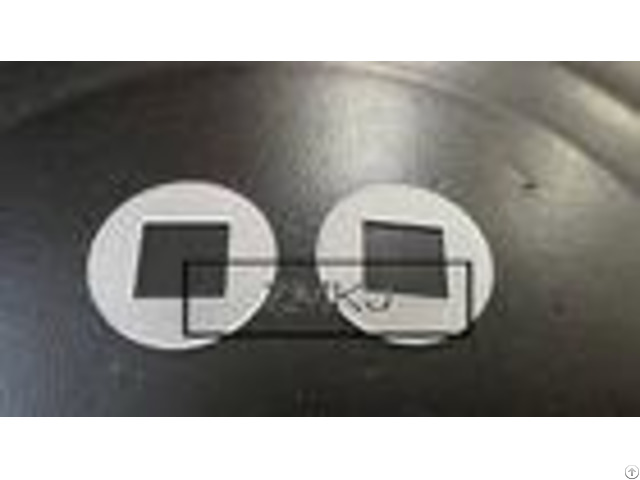

Professional Customized Optical sapphire window sapphire lens and sapphire sphere Applications Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Rubysapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ ruby ballProfessional Customized Optical sapphire window sapphire lens and sapphire sphere Materials characteristic Refractive index: (nd) 1.768 Coefficient of dispersion (Vd) 72.2 Density(g/cm3) : 3.97 TCE(m/m) 5.3 Soften Temperature() : 2000 Knoop hardness(kg/mm2): 2200 sample size size: diameter30 mm 0.05mm Inner size: 10x10mm0.05mm Thickness: 0.7mm surface: LP /LP or Polished/LP orientation: A or C Sapphire Windows and Sapphire lenses General Specifications Diameter 0.2-300mm or customization Diameter tolerance +/-0.1mm or +/-0.02mm Thickness 0.10-100mm Thickness tolerance 0.1mm or +/-0.02mm Surface quality (scratch & dig) 60/40, 40/20 or better Surface accuracy /10, /2, Clear Aperture >85%, >90% Parallelism +/-3', +/-30'' Bevel 0.1~0.3mm45 degree coating AR, BBAR or upon customer request( UV, VIS, IR) and we also offer1-8inch sizesapphire ingot.

Material - High Purity Monocrystalline Sapphire (99.996%) No Grain Boundaries, Twins, Lineages or Crack Orientation: C Plane (0001) A Plane (11-20) R Plane (10-12) M Plane (10-10) Diameter Up to 380 mm Length Up to 200 mm Surface Finish As Cored / Fine Ground Available Option Primary Orientation Flat Customer specification also available! process for sapphire wafer lens crystal>confirm orientation--> customized size ingot--> cut top and tail--> repair diameter> wire cut-->chamfer-->gri nd lap-->anneal--> fine lapped-->polished to customized size-->check Shipment package FAQ: Q: What's the way of shipping and cost? A: (1) We accept DHL, Fedex, EMS etc.

(2) If you have your own express account, it's great.

If not, we could help you ship them.

Freight is in accordance with the actual settlement.

Q: What's your MOQ? A: (1) For inventory, the MOQ is 5-20pcs.

(2) For customized products, the MOQ is 20-30pcs up.

Q: What's the delivery time? A: (1) For the standard products For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 or 3 weeks after you place the order.

Q: Do you have standard products? A: Our standard products in stock.
