Automatic Metallographic Preparation Equipment Single Station Hot Mounting Press - China

Efficient Full Automatic Single Station Hot Mounting Press with Water Cooling iPress-42A Equips with touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying.

You can optionally choose one of 22mm, 30mm, 45mm three mold specifications and do inlaying to meet the different requirements.

iPress-42A has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials.

Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Inlaying is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential procedure before sample preparation.

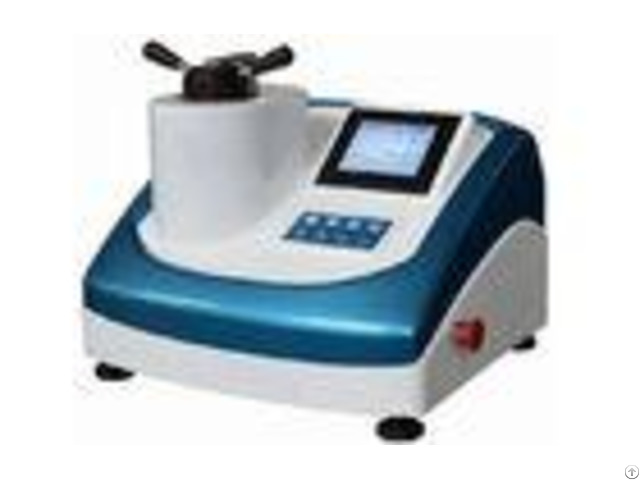

iPress-42A automatic single head mounting press is an advanced hydraulic water-cooling equipment.

The whole process of inlaying is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading.

iPress-42A adopts the touch screen, easy for operation and no need for operation personnel on duty, automatically complete the sample inlaying.

You can optionally choose one of 22mm, 30mm, 45mm three mold specifications and do inlaying to meet the different requirements.

iPress-42A has solidified the inlaying program, especially suitable for thermosetting materials, such as urea-formaldehyde molding powder and bakelite powder materials.

Using this machine makes your sample preparation work more easily and more labor-saving and the inlaying quality better and more stable.

Main Parameters: - - - - Mold Diameter | 22mm, 30mm, 45mm (choose one) | Heater Specification | 220V, 1.6kw | System Pressure | 0~20MPa (The default system pressure is 12MPa.

) | Temperature Setting Range | 0~180 (The default setting temperature is 150.

) | Dwell Time | 30 seconds, adjustable | Cooling Method | Automatic water cooling | Power Supply | 220V, 50Hz | Dimensions | 530510430mm | Weight | 60kg | - - - -
