Automobile Testing Equipment Temperature Humidity Test Chamber With Sirocco Fan - China

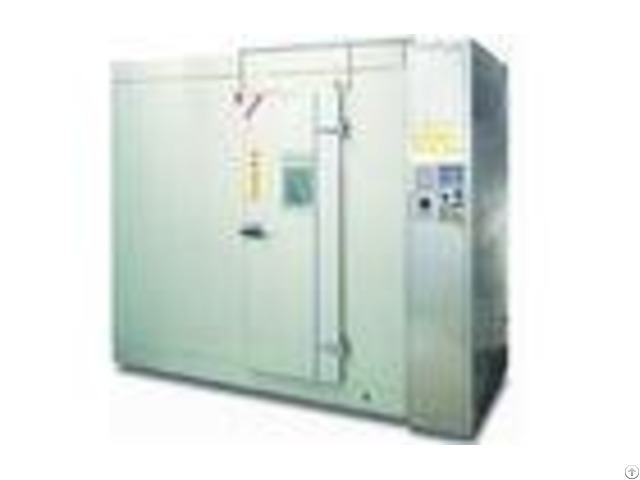

Automobile Testing Equipment Environmental Walk in Chamber with Temperature and Humidity Walk in chambers, rooms, and drive-in facilities, made from sectional panels, can be constructed in any size ranging from the very small to the extremely large.

They are often a first choice when there is restricted access to the final assembly location or when initial cost is an important consideration.

Q1-Test manufactures a complete line of both prefabricated modular chambers, assembled from sectional panels on site, and welded integral chambers discussed on a separate web page on this site.

Integral chambers are factory preassembled and made in one to six pieces for permanent installation at your facility.

Individual piece size is limited by USA over-road shipping constraints.

Very large systems can be fabricated.

Applicable Industry:

used in defense industry, aerospace industry, automation components, automotive parts, electrical and electronic parts, plastics, chemical, pharmaceutical industries and related products.

Corresponding Standard:

1 - GB11158 Technical conditions for high-temperature testing room

2 - GB10589-89 Technical conditions for low-temperature testing room

3 - GB/T10586-89 technical conditions for humidity testing room

4 - GB/T2423.1-2001 testing methods for low-temperature

5 - GB/T2423.2-2001 testing methods for high-temperature

6 - GB/T2423.3-93 technical conditions for humidity testing room

7 - GB/T2423.4-93 testing method for alternating hot and humid

8 - IEC60068-2-1.1990 testing methods for low-temperature

9 - IEC60068-2-2.1974 testing methods for high-temperature

10 - GJB150.3 High-temperature test

11 - GJB150.4 Low-temperature test

12 - GJB150.9 muggy test

13 - GB/T2423.22 temperature test Specifications: - - - -

Model | QBR-16.8 | Inner chamber size W*H*D(mm) | Please kindly give us your request and details, it is custom service.

| Exterior chamber size W*H*D(mm) | Temperature Range | 0, -20, -40, -60~+70(+80) | Humidity Range | 40%-95%RH | Performance | Temp.

&Humi.

Fluctuatio n | 0.3, 2.5%RH | Temp.

&Humi.

Uniformity | 2, 5%RH | Temp.

&Humi.

Resolution | 0.1, 0.1%RH/0.01, 0.1%RH | Heat up time(20~high temp.

) | | 80 | minutes | 50 | Cool down time(20~low temp.

) | | 0 | -20 | -40 | minutes | 55 | 70 | 100 | Material | Exterior chamber material | Stainless steel plate+ Power Coated | Inner chamber material | SUS#304 stainless steel plate | Insulation | PU& Fiberglass wool | System | Wind Circulation | Sirocco fan | Heating system | SUS#304 stainless steel high-speed heater | Humidifying | Surface evaporating system | Cooling | Imported compressor, finned type evaporator, air-cooling condenser | Dehumidifying | ADP critical dewpoint cooling/dehumidifying method | Controller | Digital electronic indicators +S.S.R.

with PID automatic calculation capability | Other Components | Vaccum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free) | Safety Devices | Overheating circuit-breaker, compressor overload protection, control system overload

protection, humidifying system overheating protection, beakdown indicator light | Power Supply | AC3380V 60/50Hz | Customization | Customization of inner chamber size, tempreture&humidity range, ect.

| - - - - Features:

1, large has a very wide range of controlling the temperature and humidity that can fulfil users needs.

It is stable, balanced heating and humidification performance, it also can be high accuracy and high stability for temperature and humidity control performance.

2, largeWalk-in constant temperature and humidity testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display.

Optional equiped with temperature and humidity records.

3, Refrigeration circuit of largeWalk-in constant temperature and humidity testing machineautomatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.

4, Door of largeWalk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.

5, largeWalk-in constant temperature and humidity testing machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
