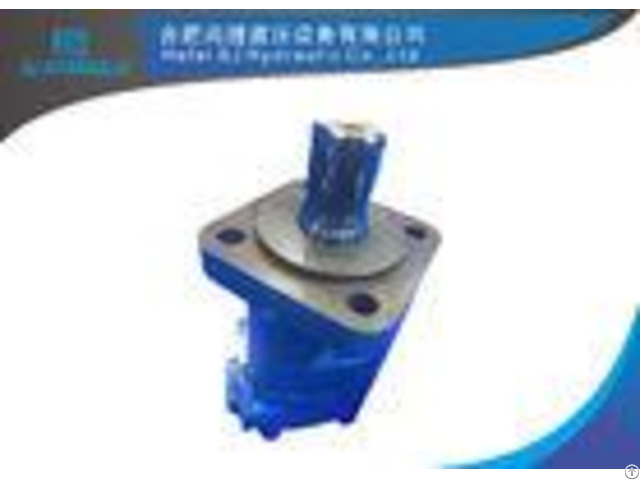

Cast Iron Hydraulic Orbital Motors - China
price: check with company for price
- - - - Model: BM5 | Brand: SJ Hydraulic | Type: Hydraulic Motor | Place Of Origin: China | Certification: ISO 9001 | Material: Cast Iron | Motor Shafts: Straight, Splined And Tapered | Power: Hydraulic Oil | Structural Style: Cycloid | Processing: Forging&cutting | Application: Construction Machinery And Agricultural Machinery | Flange: Square And Rhombus Flange | Package: Standard | Color: As Requests | Warranty: One Year | - - - - Economical Hydraulic Orbit Motor BM5with Variety of Mounting Flanges, Shafts, Ports Descrition: Compact in design with spool valving and Geroler Imported high pressure capacity shaft seal Wide variety of mounting flanges, shafts, ports and speed provides design flexibility Direction of shaft rotation and speed can be controlled easily and smoothly Best combination of efficiency and economy in medium duty applications Applications: Hydraulic system, engineering machine, industry machine Specifications: - - - - Displ.
(cc/r) | 245 | 310 | 390 | 490 | 630 | 800 | Flow(LPM) | Rated | 80 | 80 | 80 | 80 | 80 | 80 | Max | 100 | 100 | 100 | 100 | 100 | 100 | Speed(RPM) | Rated | 320 | 250 | 200 | 200 | 160 | 120 | Max | 350 | 280 | 230 | 200 | 160 | 120 | Pressure(Bar) | Rated | | | | | | | - - - - - - - - Brand: SJ HYD | Material: Cast Iron | Color: As Requets | Condition: New | Warranty: One Year | Type: Orbit Motor | Place Of Origin: China | Certification: ISO9001 | Motor Shafts: Straight, Splined And Tapered | Power: Hydraulic Oil | Structural Style: Cycloid | Processing: Foring & Cutting | Application: Engineering Mahinery And Agricultural Machinery | Motor Flange: Square And Rhombus Flange | Package: Standard Package | - - - - 250 / 280 / 500 ml/r Industrial / Engineering Geroler Hydraulic Orbit Motor BM5 Applications: Hydraulic system, engineering machine, industry machine Descrition: Compact in design with spool valving and Geroler Imported high pressure capacity shaft seal Wide variety of mounting flanges, shafts, ports and speed provides design flexibility Direction of shaft rotation and speed can be controlled easily and smoothly Best combination of efficiency and economy in medium duty applications Specifications: - - - - Displacement(ml/r) | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 305 | 400 | 500 | Flow(LPM) | Cont.
| 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | Int.
| 85 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 130 | 130 | Speed(RPM) | Cont.
| 850 | 675 | 552 | 430 | 345 | 276 | 246 | 226 | 180 | 144 | Int.
| 956 | 855 | 700 | 660 | 529 | 423 | 378 | 347 | 308 | 246 | Pressure(Mpa) | Cont.
| 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 15 | 15 | 12 | Int.
| 28 | 28 | 28 | 25 | 25 | 25 | 25 | 21 | 17.5 | 15 | Torque(N*m) | Cont.
| 178 | 223 | 278 | 356 | 445 | 557 | 592 | 580 | 715 | 720 | Int.
| 285 | 356 | 445 | 509 | 636 | 755 | 779 | 763 | 840 | 860 | - - - - Note: 1 - Continuous data: The Max.
Value of operating motor continuously.
2 - Intermittent Data: The Max.
Value of operating motor in 6 seconds per minute.
3 - A simultaneous max.
RPM and max.
Pressure is not recommended.
4 - The Conversion Factors is on the page 4, consult it please 5 - Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.
Company Contact:
- Posted By: HEFEI SJ HYDRAULIC CO., LTD
- Phone: 86-551-62939227
- Address: No.1003,11 Building,Chunrong Center,Binhu Century,Baohe Area, Hefei city, China, Hefei , Anhui , China
- Email:
- Website: https://www.orbit-hydraulicmotor.com
Published date: February 9, 2018
- Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide , SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
