Construction Agricultural Machine Orbit Hydraulic Motor With Straight 25 30 Flat 8 - China

price: contact company for price

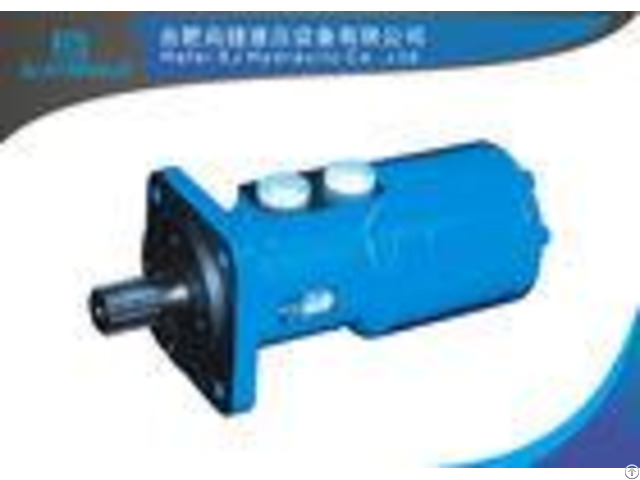

Construction Agricultural Machine Orbit Hydraulic Motor With Straight 25 30 Flat 8

Products Photos Catalog Construction Photos Catalog

High Efficiency Hydraulic Orbit Motor BM3 with Straight 25 / 30 flat 8 Specifications: - - - - Displacement (ml/r) | 100 | 125 | 160 | 200 | 245 | 305 | 395 | Flow (LPM) | Rated | 50 | 50 | 50 | 50 | 50 | 50 | 50 | Max | 60 | 60 | 60 | 60 | 60 | 60 | 60 | Speed (RPM) | Rated | 400 | 370 | 250 | 200 | 175 | 160 | 120 | Max | 500 | 420 | 315 | 250 | 225 | 200 | 140 | Pressure (Mpa) | Rated | 124 | 124 | 115 | 110 | 110 | 90 | 90 | Max | 138 | 130 | 124 | 124 | 120 | 120 | 110 | Torque (N*m) | Rated | 175 | 230 | 271 | 328 | 384 | 480 | 500 | Max | 197 | 340 | 39 | 355 | 410 | 509 | 628 | Weight KG | | 9.8 | 10.1 | 10.4 | 11 | 11.6 | 12.1 | 13.9 | - - - - - - - - Standared direction of rotation: CW-When A port Pressurized(Viewed from the shaft end) | Displacement cc/r | 100 | 125 | 160 | 200 | 245 | 305 | 395 | H mm | 188 | 193 | 200 | 206 | 215 | 226 | 243 | - - - - - - - - Flange and Pllot | Shaft | Port | Displacement cc/r | 100 | 125 | 160 | 200 | 245 | 306 | 395 | 4 Bolt Flange 4-13 hole Pilot 100 | Straight 25 flat 8 | 2-M22X1.5 NO Case Drain | 171m1113 | 1112 | 1114 | 1115 | 1116 | 1117 | 1119 | Straight 30 flat 8 | 171m1123 | | 1124 | 1125 | 1126 | 1127 | 1129 | 60-30X26X8 | 171m1133 | 1132 | 1134 | 1135 | 1136 | 1137 | 1139 | 60-30X26X6 | 171m1143 | | 1144 | 1145 | 1146 | 1147 | 1149 | Straight 25 flat 8 | 171m1153 | 1152 | 1154 | 1155 | 1156 | 1157 | 1159 | 60-30X26X6 | 2-M22X1.5 NO Case Drain | 171m1203 | | 1204 | 1205 | 1206 | 1207 | 1209 | Straight 30 flat 8 | 2-M22X1.5 Case Drain M14X1.5 | 171m1163 | | 1164 | 1165 | 1166 | 1167 | 1169 | 60-30X26X8 | 171m1173 | 1172 | 1174 | 1175 | 1176 | 1177 | 1179 | 60-30X26X6 | 171m1183 | | 1184 | 1185 | 1186 | 1187 | 1189 | 4-11 long flange Pilot 85 | 60-25X22X6 | 2-M22X1.5 NO Case Drain | 171m1193 | | 1194 | 1195 | 1196 | 1197 | 1199 | Straight 25 flat 8 | 171m1213 | 1212 | 1214 | 1215 | 1216 | 1217 | 1219 | - - - - Descrition: Compact in design with spool valving and Geroler Imported high pressure capacity shaft seal Wide variety of mounting flanges, shafts, portsand speed provides design flexibility Direction of shaft rotation and speed can be controlled easily and smoothly Best combination of efficiency and economy in medium duty applications Applications: Hydraulic system, engineering machine, industry machine Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.


Company Contact:


  • Phone: 86-551-62939227

  • Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
