High Accuracy Water Cooling Laser Cladding Machine With Centralized Control System - China

High Accuracy Water Cooling Laser Cladding Machine With Centralized Control System Description: Centralized-control system 1 - Through our secondary developed KUKA operation control system, the optical semiconductor laser robot flexible manufacturing system units (optical semiconductor laser, robot, chiller, sliding table base and send powder, etc.

) are centralized control automation, making the user operate more conveniently and reliably.

2 - Control system adopts Siemens PLC controller and has security protection function, when there is emergency stop or collision, it can directly operate teaching device to start the laser and the robot each axis, no need manual release, models: S7-1200, the system is equipped with 10 inch touch screen operation panel, to display running status and the fault type of equipment.

Specification: - - - - Model | GS-LS3DA | Max.

Outside Diameter | 70mm | Optical Diameter | 44mm | Machine Weight | 5kg(Does Not Contain The Nozzle) | Laser Beam Quality | 60mm.

Mrad | Collimating Focal Length | 81mm | Focal Length | 400mm | Spot Size | 3mm | 22mm3mm(Optional) | Optical Fiber Connector Socket | LLKD | Storage Temperature | 5-65 | Operating Temperature | Max.

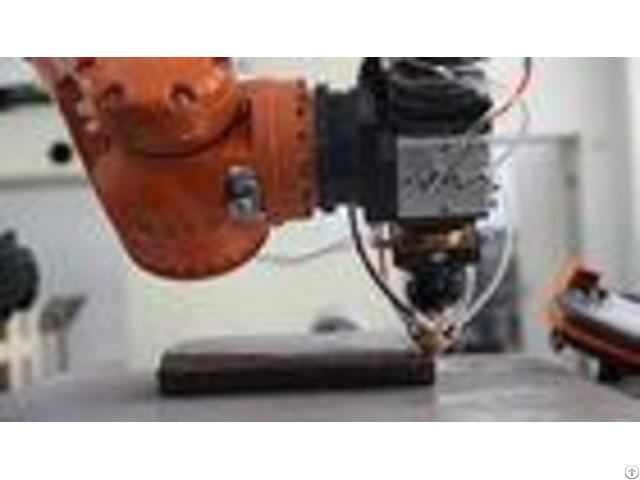

50 | Temperature | Non-Condensing | - - - - Product the cooling system - - - - | Match laser power (W) | 4000 | Cooling capacity (kW) | 16 | Power | AC 3P 380V/50Hz | Rated power (kW) | 8 | Pump flow (L / min) | 35 | Water Pressure (Bar) | 3.5 | Recycled water | [deionized] [water] | Water temperature range () | High Temperature 27 ~ 33, High Temperature20 ~ 22 | Temperature Accuracy () | 0.1 | - - - - Coaxial powder feeding system Equipped with paraxial pneumatic type coaxial feeding device, installed below the laser head, move with the laser head, output powder overlaps with light beam focus, It is used for laser cladding processing of artifacts or work piece local repair, convenient, quick, efficient.

It can feed powder with coaxial laser beam to complete the processing for the complex surface laser cladding.

Installation condition requirements: 1, Installation area: Not less than 100, Height not less than 3.5m, convenient for lifting; 2, Environmental temperature 5 to 40 ; 3, Environment relative humidity: 5% ~ 85%; 4, Power supply parameters: Three phase four wire system 380V5%, 50Hz1Hz; 5, Total power: 40 kVA; 6, Air compressor: Z - 0.53/10 type (Displacement 0.53 M3 / min, Pressure is 1.0 Mpa).

7, No strong electromagnetic interference, less dust, no acid mist; 8, NO obvious vibration; 9, Grounding electrical resistance4 - ApplicationIndustry: Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
