High Compressive Strength Sapphire Bearings 85 Vision Light Transmissivity - China

price: check with company for price

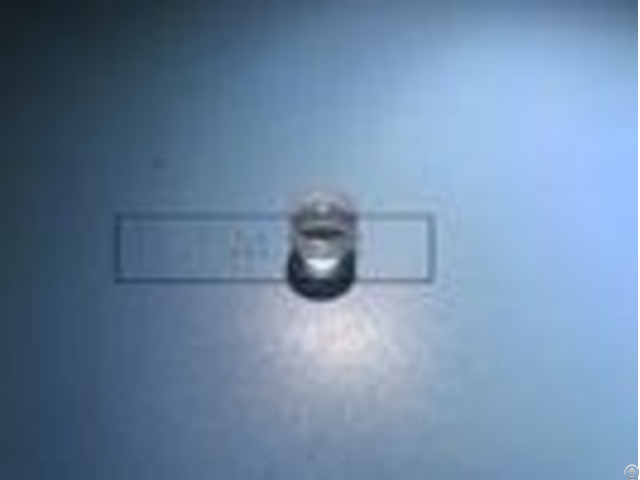

sapphire glass lens for watch, sapphie optical lens, watch glass lens by sapphire, sapphire rough lens, sapphire glass parts for bearing, sapphire bearing, sapphire convex lens, Al2O3 single crystal lens by customized 1.0 Sapphire Windows and Sapphire lenses General Specifications - - - - Property | Specification | Thickness | 0.5-300mm | Size tolerance | +/-0.01 | Edge Finish | Ground and beveled | Surface Quality | commen 40-20 scratch-dig | Surface Flatness | the best/4 @ 633 nm | Parallelism | 3 arc min (0.9 mrad) | Clear Aperture | >80% of central diameter | Hardness (Knoop) | 1370 kg mm-2 | Young's modulus | 3.4 x 1011 N m-2 | Thermal Limit | 22 W m-1 K-1 | Thermal expansion coefficient | 8.4 x 10-6 K-1 | - - - - Product Description Sapphire optical windows are ideal for applications where high pressure, vacuum, or corrosive atmospheres are a consideration.

Sapphire, a single crystal form of Al2O3, is resistant to attack by strong acids due to its high dielectric constant.

It has high compressive strength and a high melting point.

It is also resistant to UV radiation darkening.

Our sapphire optical windows are not coated, but a single layer coating of MgF2 on each surface of the window increases the single surface transmittance to 99% throughout the entire visible spectral region.

Please note the SAW series sapphire windows are provided in random axis orientation by default and its birefringent nature could affect the polarization state of your application.

2 - Applications Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball 1 3.0 QC.

Standard for sapphire 4.0 Products FAQ: Q1: Can I have samples to test? A: Yes, we are pleased to supply samples to test and check quality, mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 3pcs Q3: Whats the lead time? A: Sample : 2-3 days.

Mass production: 10-20 days.

Q4: How do you ship the goods and how long does it take? A: We usually ship goods by UPS, FEDEX, TNT.

It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products? A: After test them if not pass test, you can return the goods at any time.

Q6: Do you accept OEM? A: We have our own brand-metalaser.

OEM is also acceptable.
