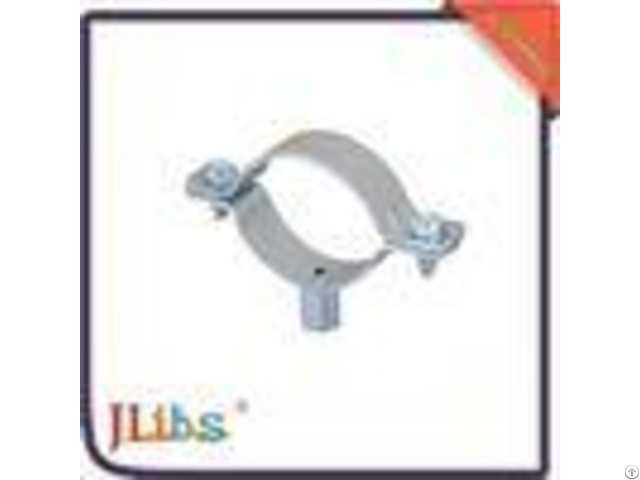

High Performance Cast Iron Pipe Clamps 40 110 Working Temp - China

High Performance Cast Iron Pipe Clamps -40 - 110 Working Temp - - - -

Model Number | 1420 | Material | Carben steel | Standard or Nonstandard | Standard | Structure | Suspension Clamp | Dmm | 18-710mm | Width* Thickness | 20*(1.8-2.0) | Customized | YES | Working Temp | -40 ~ 110 | Hardness | 45+-5 Shore | Wholesale acceptable | YES | - - - - Specifications: # Easy and safe assembly through Philips Combi side screws # Side screws are protected against loss during assembly and delivery with the help of plastic washers.

# Electrogalvanized for corrosion protection(8-10 Microns) Description: 1 - Material: Carbon steel ST12 2 - Suface finished: Electro zinc plated 3 - Payment term: (1).

L/C at sight; (2).

T/T: 30% deposit by T/T, 70% balance by T/T before shipment 4 - Trade term: CIF, CFR or FOB Ningbo.

5 - Packing detail: * Neutral packing: export standard carton.

* Or in accordance with customer requirements packaging.

6 - Delivery time * We used the restocking-sell method, if the warehouse have, we may delivery it in several days, or 25-50 days after receiving the deposit.

It depends on the quantity ordered.

7 - Min.

order (1).

If the productions are in our stock warehouse.

No MOQ for stocking production.

(2).

Order a HQ container, the price will be more favorable.

Applications: For fastening: Pipe lines, such as heating, sanitary and waste water pipes, to walls, cellings and floors.

- - - -

WELDING TYPE CLAMPS M-8+10 WITHOUT RUBBER | | | | | REFERENCE | MM | Dmm | | A*Bmm | 142018 | 18 | 15-19 | 3/8" | 20*(1.8~2.0) | 142022 | 22 | 20-25 | 1/2" | 20*(1.8~2.0) | 142028 | 28 | 26-30 | 3/4" | 20*(1.8~2.0) | 142035 | 35 | 32-36 | 1" | 20*(1.8~2.0) | 142040 | 40 | 38-43 | 11/4" | 20*(1.8~2.0) | 142048 | 48 | 47-51 | 11/2" | 20*(1.8~2.0) | 142054 | 54 | 53-58 | | 20*(1.8~2.0) | 142060 | 60 | 60-64 | 2" | 20*(1.8~2.0) | 142070 | 70 | 68-72 | | 20*(1.8~2.0) | 142075 | 75 | 75-80 | 21/2" | 20*(1.8~2.0) | 142083 | 83 | 80-86 | | 20*(1.8~2.0) | 142090 | 90 | 87-92 | 3" | 20*(1.8~2.0) | 142100 | 100 | 96-101 | 31/2" | 20*(2.3~2.5) | 142110 | 110 | 105-111 | | 20*(2.3~2.5) | 142115 | 115 | 109-116 | 4" | 20*(2.3~2.5) | 142125 | 125 | 120-126 | | 20*(2.3~2.5) | 142133 | 133 | 123-138 | | 20*(2.3~2.5) | 142140 | 140 | 129-143 | 5" | 20*(2.3~2.5) | 142150 | 150 | 145-150 | | 20*(2.3~2.5) | 142160 | 160 | 157-161 | 6" | 20*(2.3~2.5) | 142168 | 168 | 162-168 | | 20*(2.3~2.5) | 142180 | 180 | 176-184 | | 20*(2.3~2.5) | 142200 | 200 | 193-200 | | 20*(2.3~2.5) | 142220 | 220 | 217-229 | 8" | 20*(2.3~2.5) | 142224 | 224 | 221-228 | | 20*(2.3~2.5) | 142250 | 250 | 246-254 | | 20*(2.3~2.5) | 142280 | 280 | 276-284 | | 20*(2.3~2.5) | 142300 | 300 | 296-304 | | 20*(2.3~2.5) | 142315 | 315 | 310-319 | | 20*(2.3~2.5) | 142355 | 355 | 351-359 | | 20*(2.3~2.5) | 142400 | 400 | 394-404 | | 20*(2.3~2.5) | 142450 | 450 | 445-454 | | 20*(2.3~2.5) | 142500 | 500 | 495-504 | | 20*(2.3~2.5) | 142560 | 560 | 555-564 | | 20*(2.3~2.5) | 142600 | 600 | 594-604 | | 20*(2.3~2.5) | 142630 | 630 | 625-634 | | 20*(2.3~2.5) | 142710 | 710 | 705-714 | | 20*(2.3~2.5) | D | E*L | | | | 18-75 | M6*15 | | | | 83-710 | M6*20 | | | | - - - -
