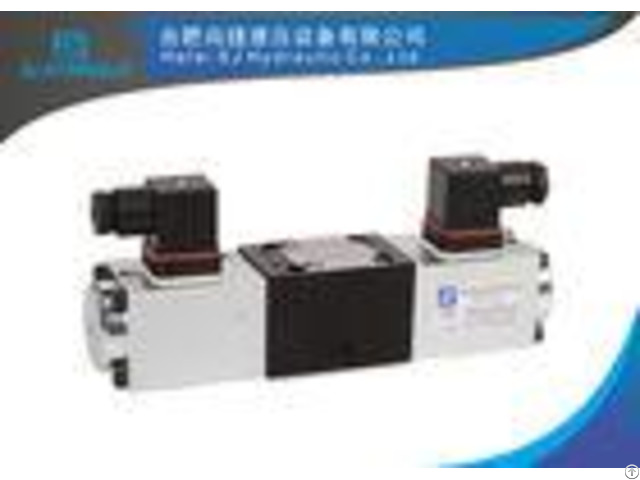

High Pressure Flow 315 Bar Hydraulic Proportional Valve One Year Warranty - China

price: check with company for price

High Pressure Flow 315 Bar Hydraulic Proportional Valve One Year Warranty

Products Photos Catalog Pressure Flow 315 Bar Photos Catalog

MA-DHZO MA-DKZOR Hydraulic Proportional Valve 06 -10 flow 105L/MIN P=30bar HYDRAULIC CHARACTERISTICS( based on mineral oil ISO VG 46 at 50c ) - - - - Hydraulic symbols | Valve model | DHZO | DKZOR | Spool overlapping | 1, 3 | 1, 3 | 1, 3 | 1, 3 | 1, 3 | 1, 3 | 1, 3 | Spool type and size(2) | L14 | L1 | S2 | S3, L3, D3 | S5, L5, D5 | S3, L3, D3 | S5, L5, D5 | Pressure limits [bar] | Ports P, A, B=350; T=210(250 with external drain/Y | Ports P, A, B=315, T=210(250/Y) | Max flow (1) [l/min] | 1 | 4.5 | 8 | 17 | 28 | 45 | 60 | At P= 10 bar (P-T) | At P= 30 bar(P-T) | 2 | 8 | 14 | 30 | 50 | 80 | 105 | At P=70bar (P-T) | 3 | 12 | 21 | 45 | 74 | 120 | 160 | Response time (4) [ms] | < 30 | < 40 | Hysteresis [%] | < 5% | < 5% | Repeatability | + 1% | + 1% | - - - - NOTES: Above performance data refer to valves coupled with Atos electronic drivers, see section 2 The flow regulated by the directional proportional valves is not pressure compensated.

Thus it is affected by the load variations.

To keep costant the regulated flow under different load conditions, modular pressure compensators are available (see tab.

D150) For different P, the max flow is in accordance to the diagrams in sections 14.2 and 15.2 0-100% step signal


Company Contact:


  • Phone: 86-551-62939227

  • Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
