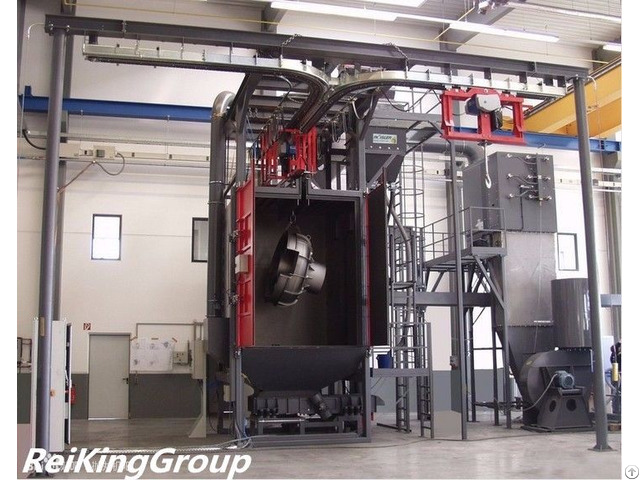

Hook Type Shot Blasting Machine - China

Hook-type shot blasting machine is our common machine type with mature technology, the machine is suitable for the surface cleaning or intensifying of medium or small quantities of steel parts, castings, forging and welding parts, especially for thin-walled parts for fear of collision surface treatment is more appropriate.

Blast wheel is arranged in the form of multi-angle, choosing the world most advanced high efficiency single disk curve blade blast wheel, which is a high-speed projectile shot blasting emitted dense projectile to the original state of the steel, steel structures subjected to strong surface throw hit, remove its rust layer, welding slag, scale, etc., to eliminate residual internal stress in order to achieve a stable state, so as to obtain a uniform metallic luster, in order to improve the quality of finishing and corrosion protection of steel, improve the inherent quality of steel, extending its life.

This kind of machine has these competitive advantages:

1 - This machine uses no pit structure, easy installation, reducing investment costs;

2 - The device is characterized by safe, reliable, compact structure, high cleaning efficiency, good cleanup quality, and smooth running;

3 - Hook has its own lift, walking and indoor rotating three functions;

4 - The chamber indoor uses high-manganese steel plate guard.

Compared to the previous rubber sheet protection, its life greatly improved, obtaining a beautiful appearance, and it’s easy to replace.

This is recent most popular way to guard cleaning machine chamber indoor;

5 - We have a full accessories of machine guard plate parts, and we are ready to provide services for users at any time.

Just call our consumer hotline.

Item Q376 Q378B Q378C Q378E Q3710 Q3720 Q3730 Q3750

Workpiece Size mm φ600×

1100 φ800×

1500 φ900×

1500 φ900×

1500 φ1200×

1800 φ1400×

2200 φ1600×

2300 φ1800×

2500

Single Hook Lifting Weight

kg 600 1000 1000 1000 1000 2000 3000 5000

Shot Blast Volume

kg/min 2×120 2×180 2×250 2×250 2×250 3×250 3×250 4×250

Lifting Volume t/h 15 25 30 30 30 45 45 60

Separating Volume

t/h 15 25 30 30 30 45 45 60

Ventilation Volume

m3/h 5000 7200 8300 8300 9000 15000 15000 18000

Power

(free of dust removal)

kW 19 28 37.4 39.65 39.65 61.27 64.4 78.4

Size

mm 4429×2850

×3443 4325×3080

×5010 4844×3850

×5156 4844×3850

×5156 5844×3742

×5716 6110×3600

×7840 7062×3460

×8650 8050×6400

×8530

Machine weight (Reference)

kg 3810 5100 7200 7500 8500 11000 14000 21000

Company Contact:

• Posted By: Qingdao xinrunqi environmental protection technology Co., Ltd.

• Phone: +8613730950817

• Address: No.1 QianYun Road, Qingdao , China

• Email:

• Business Description: We are a professional and industry-leading manufacturer of shot/sand blasting machine, rust removal machine, dust removal equipment, smell removal equipment and various surface treatment equipment, home vendor of CNPC.

  As a enterprise with long history, advanced technology and strong design strength, we are a National Foundry Machinery Standardization Technical Committee member.
