Laser Projection Display Gallium Nitride Wafer 330um Thickness White Color - China

price: check with company for price

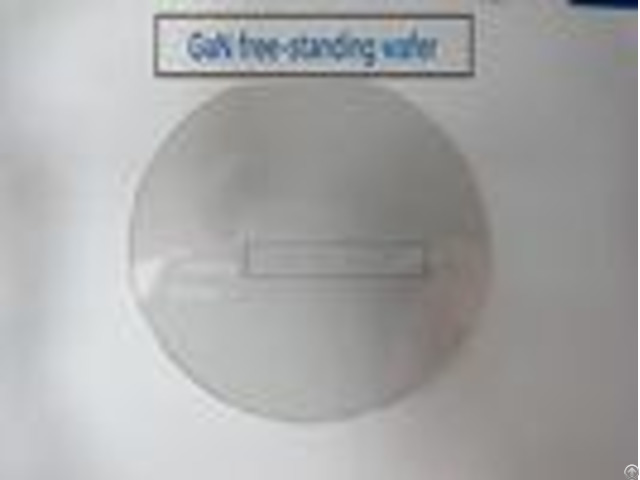

2inch free-standing GaN substrates, GaN wafer for LD, semiconducting Gallium Nitride Wafer for led, GaN template, 10x10mm GaN substrates, native GaN wafer, # # III-Nitride(GaN, AlN, InN) Forbidden band width (light emitting and absorption) cover the ultraviolet, visible light and infrared.

GaN can be used in many areas such as LED display, High-energy Detection and Imaging, Laser Projection Display, Power Device, etc.

Specifications: - - - - Item | GaN-FS-N | Dimensions | 50.8mm 1mm | Marco Defect Density | A Level | 2 cm-2 | B Level | > 2 cm-2 | Thickness | 300 25 m | Orientation | C-axis(0001) 0.5 | Orientation Flat | (1-100) 0.5, 16.0 1.0mm | Secondary Orientation Flat | (11-20) 3, 8.0 1.0mm | TTV(Total Thickness Variation) | 15 m | BOW | 20 m | Conduction Type | N-type | Resistivity(300K) | < 0.5 cm | Dislocation Density | Less than 5x106 cm-2 | Useable Surface Area | > 90% | Polishing | Front Surface: Ra < 0.2nm.

Epi-ready polished Back Surface: Fine ground | Package | Packaged in a class 100 clean room environment, in single wafer containers, under a nitrogen atmosphere.

| - - - - 2 - OurEnterprise Vision we will provide high quality GaN substrate and application technology for the industry.

High quality GaNmaterial is the restraining factor for the III-nitrides application, e.g. long life and high stability LDs, high power and high reliability micro-wave devices, High brightness and high efficiency, energy-saving LED.

-FAQ Q: What you can supply logistics and cost? (1) We accept DHL, Fedex, TNT, UPS, EMS, SF and etc.

(2) If you have your own express number, it's great.

If not, we could assist you to deliver.

Freight=USD25.0(the first weight) + USD12.0/kg Q: What's the delivery time? (1) For the standard products such as 2inch 0.33mm wafer.

For inventory: the delivery is 5 workdays after order.

For customized products: the delivery is 2 or 3 workweeks after order.

Q: How to pay? 100T/T, Paypal, West Union, , Secure payment and Trade Assurance.

Q: What's the MOQ? (1) For inventory, the MOQ is 1pcs.

(2) For customized products, the MOQ is 5pcs-10pcs.

It depends on quantity and technics.

Q: Do you have inspection report for material? We can supply ROHS report and reach reports for our products.


Company Contact:


  • Phone: 86-512-36829962

  • Address: Rm1-607,No.231,Lvdi Road, Huaqiao town, Kunshan city,jiangsu Province, Kunshan , Jiangsu , China

  • Email: Email


Published date: March 19, 2018

  • Business Description: As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
