Long Service Life High Speed Hydraulic Motorbm2 Series Danfoss Eaton Replacement - China

price: check with company for price

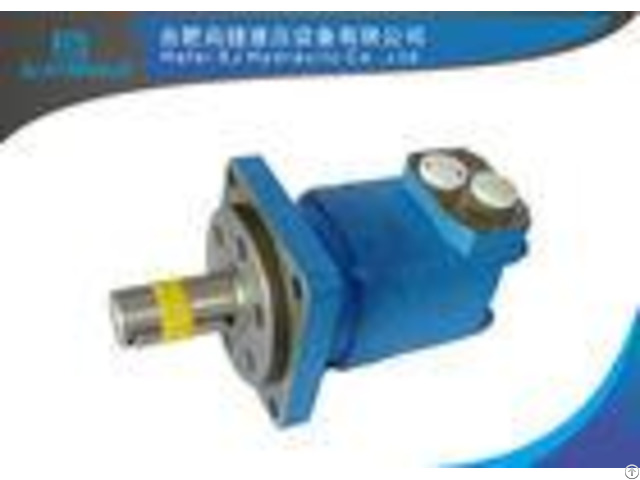

Long Service Life High Speed Hydraulic Motorbm2 Series Danfoss Eaton Replacement

Products Photos Catalog Life Hydraulic Photos Catalog

BM2 motor BM2 series motor is a medium, spool valve type motor.

can bear higher pressure than BM1 - Characteristic features: It adapts the gerolor design.

Has higher efficiency than BM1 motor.

Credible design for shaft seal, which can bear high pressure, and be used in parallel or in series.

Direction of shaft speed can be controlled easily and smoothly.

Best efficiency and economy in medium load applications.

Main Specification - - - - Displacement | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | (ml/r) | | | | | | | | | | | | | | | | | | | | | | | | | | | | low | | Cont.

| 40 | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | | | | | | | | | | | | | | (LPM) | | Int.

| 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | | | | | | | | | | | | | | | | | Speed | | Cont.

| 755 | 630 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 | 110 | | | | | | | | | | | | | | (RPM) | | Int.

| 970 | 790 | 940 | 750 | 600 | 470 | 375 | 300 | 240 | 200 | 128 | | | | | | | | | | | | | | | | | | | Cont.

| 14 | 14 | 17.5 | 17 - | 17.5 | 16.5 | 13 | 11 | 8.5 | 8.5 | 8 | Pressure | | 5 | | | | | | | | | | | | | (MPa) | | Int.

| 17.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 14 | 11.5 | 11.5 | 9 | | | | | | | | | | | | | | | | | Torque | | Cont.

| 100 | 124 | 190 | 240 | 292 | 363 | 358 | 352 | 360 | 420 | 464 | (N*m) | | | | | | | | | | | | | | | Int.

| 126 | 156 | 220 | 280 | 340 | 430 | 448 | 470 | 470 | 548 | 580 | | | | | | | | | | | | | | | | | - - - - Note: 1 - Continuous data: The Max.

Value of operating motor continuously.

2 - Intermittent Data: The Max.

Value of operating motor in 6 seconds per minute.

3 - A simultaneous max.

RPM and max.

pressure is not recommended.

4 - The Conversion Factors is on the page 4, consult it please 5 - The optimum operating situation should be at the 1/32/3 of the continuous operating situation.


Company Contact:


  • Phone: 86-551-62939227

  • Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
