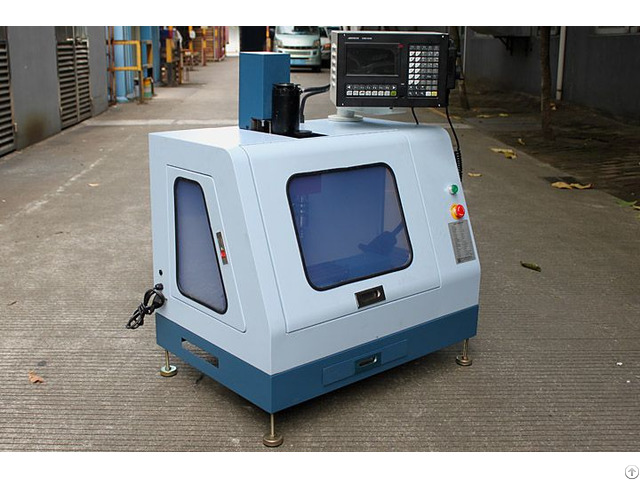

Mini Cnc Milling - China

Features

(1).

High performance 4 axis milling CNC controlle.

(2).

The standard spec includes electronic hand wheel.

(3).

Selection of high -quality casting materials, more compact.

(4).

X, Y, Z, A four axis micron level interpolation accuracy controlling;

(5).

USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.

(6).

Network interface, supporting for remote monitoring and DNC file transfer processing (7).

Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.

(8).

Macro variable, macro definition programming, realizing a variety of logical relations.

Support macro program with parameters, convenient to the user programming

(9).

DXF+G code template function, converting DXF automatically to G code for processing.

(10).

With the automatic aligning instrument.

(11).

Teaching function: Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.

(12).

Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.

(13).

Multi interface selection: support multi language interface display, automatic fault alarm.

Processing information display, processing time, the number.

(14).

Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.

(15).

7 inch super large colorful(800*480) LCD screen.

(16).

Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters

X axis travel 210mm

Y axis travel 95mm

Z axis travel 200mm

Spindle taper MT3/R8

Tool DIA.

range 4-16mm

Control system Adtech 4640, Optional siemens 808D or GSK980MDc cnc controller

Instruction DXF+G code template function, converting DXF automatically to G code for processing

MPG hand wheel 4 axis

Spindle motor 350W(1.5kw optional)

Spindle speed 100-3500r/min(24000r/min optional)

The max moving speed 1200mm/min

The max feeding speed 500mm/min

Power of X 1.35 Nm

Power of Y/Z 2.2Nm

Positioning accuracy 0.03mm

Repeatability accuracy 0.02mm

Transmission ball screw

Table size 390*92mm

T slot (amount*width) 38*12mm

Max.

load 30kg

Table structure Full cast iron

Power 230/120V

Weight(NW/GW) 140/160kg

Overall dimension 845*580*850mm

Packing size 930*650*1100m
