Ozone Test Chamber Accelerated Weathering Chamberfor Rubber Cracking - China

price: contact company for price

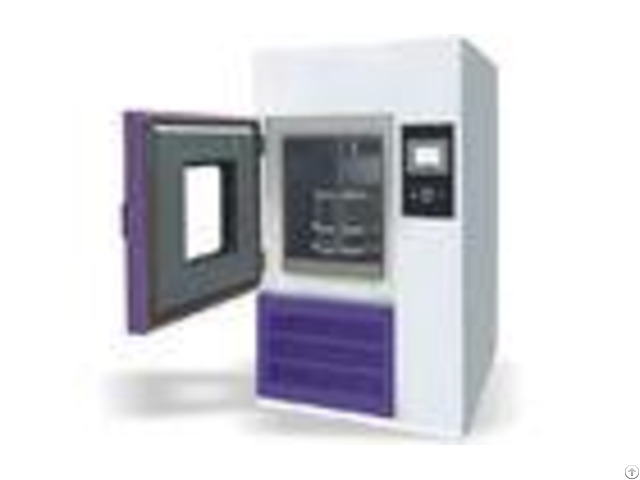

Ozone Test Chamber Accelerated Weathering Chamberfor Rubber Cracking

Products Photos Catalog Ozone Test Chamber Photos Catalog

Touch Controller Ozone Aging Resistance Test Chamber for Rubber Cracking Ozone Aging is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.

Ozone Aging Test Chamber can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens surface and the degree of change of other properties to evaluate the rubbers ozone aging resistance properties.

Conform standards: ASTM 1149 Standard Test Methods for Rubber DeteriorationCracking in an Ozone Controlled Environment ISO 1431 Rubber, vulcanized or thermoplastic - Resistance to ozone cracking - Part 1: Static and dynamic strain testing JISK6259 Rubber, vulcanized or thermoplastic - Determination of ozone resistance GB/T13642 Rubber, vulcanized - Resistance to ozone aging - Dynamic strain test method Specifications: - - - - Model | QCY-100 | QCY-250 | QCY-500 | QCY-1000 | Internal dimensions (mm) | 400*500*500 | 600*600*700 | 700*800*900 | 1000*1000*1000 | Overall dimensions (mm) | 860*1050*1620 | 960*1150*1860 | 1180*1350*2010 | 1500*1550*2110 | Diameter of holder (mm) | 350 | 400 | 600 | 900 | Temperature range | RT+10 - 60, -10 - 80 (Optional) | Humidity range | 30% - 98R.

H | Temperature fluctuation | 2 | Speed rate for cooling | Environmental conditional ~ 0 within 20 min.

| Timing range | 0999 hours | Ozone concentration | 20-200PPhm, 50-250PPhm, 0-500PPhm, 0-1000PPHM for selection | Concentration accuracy | 5% | Sample holder rotate speed | 0~10 r/min (adjustable) | Clamps tensile stretch | 5%35% | Max.

ozone concentration | 120gO3/m | Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) | Power & voltage | AC380V 50HZ | | Customized Internal Dimension is Available | - - - -


Company Contact:


  • Phone: 86-769-22179727

  • Address: No. 88, Jiaolian Yiheng Road, Wanjiang district, DongGuan, China (523046), DongGuan , guangdong , China

  • Email: Email


Published date: March 1, 2018

  • Business Description: DongGuan Q1-Test Equipment Co., Ltd .

    Mainly specialized in manufacturing, developing and marketing various environmental testing equipment like programmable temperature and humidity test chamber QTH series, industrial drying oven, burn-in chamber, salt spray/corrosion test chamber QCC series.
