Pressure 315 Bar Hydraulic Directional Control Valve 32 Flow 600l Min - China
price: check with company for price

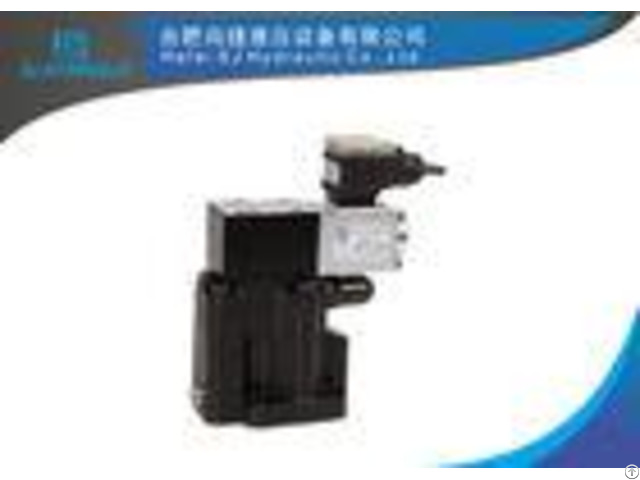

Pressure 315 Bar Hydraulic Proportional Valve MA-AGMZO 32 flow 600L/min HYDRAULIC CHARACTERISTICS( based on mineral oil ISO VG 46 at 50c ) - - - - Hydraulic symbols Valve model | AGMZO-A AGMZO-AE, AGMZO-AES | Size | 10 | 20 | 32 | Max regulated pressure | 50, 100, 210, 315, 350 | Min.
regulated pressure (Q=25 l/min) [bar] | 7(10 for/350) | 6(10 for/350) | 5.5(10for/350) | Max pressure at port P [bar] | 350 | Max pressure at port T [bar] | 210 | Max flow [l/min] | 200 | 400 | 600 | Response time 0-100% step signal [ms] (depending on installation) | 120 | 135 | 150 | Hysteresis [% of the max pressure] | < 2 | Linearity [% of the max pressure] | < 3 | Repeatability [% of the max pressure] | < 2 | - - - - Above performance data refer to valves coupled with Atos electronic drivers, see section 2
Company Contact:
- Posted By: HEFEI SJ HYDRAULIC CO., LTD
- Phone: 86-551-62939227
- Address: No.1003,11 Building,Chunrong Center,Binhu Century,Baohe Area, Hefei city, China, Hefei , Anhui , China
- Email:
- Website: https://www.orbit-hydraulicmotor.com
Published date: February 9, 2018
- Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide , SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
