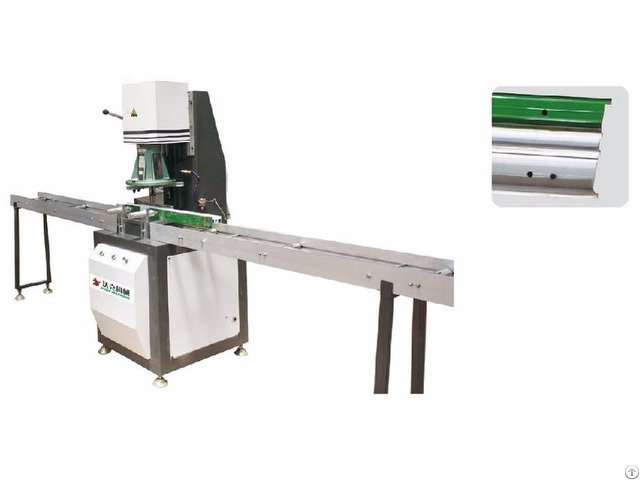

Single Axis Multi Head Drilling Machine - China
price: 2000.00 Dollar US$
Model Number: KH0038
Features:
This machine is used for processing aluminum window door, curtain wall profiles.
One time clamping can finish drilling for multi-holes, ensuring the processing repeatability and accuracy.
Technical Parameters:
Power 2.2 kw
Voltage 380V, 50Hz
Worktable size 250mm x 250mm (W x H)
Air pressure 0.6~0.8 mpa
Air consumption 120L/min
Speed 2800 rpm
drilling holes distance 18-102mm
Max hole size Ø12mm
Machine size 850mm x 790mm x 1770mm
Machine weight 210 kg
Company Contact:
- Posted By: Jinan Woke machinery Co., Ltd.
- Phone: +8613798478450
- Address: Diaozhen Industry park 7#, Jinan , Shandong , China
- Email:
- Website: http://www.doorwindowmachine.com
Published date: October 19, 2016
- Business Description: Woke Machinery Co., Ltd. is the leading manufacturer and exporter for door, window, curtain wall and insulating glass equipment.
The operation management of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
We focus on technological innovation, with continuous improvement of technical research and development, and constantly develop high-end products with advanced level.
Our machines include
single-head or double-head cutting saw
Corner crimping machine
End milling machine
end crimping machine
Punching machine
Copy Router
Other auxiliary machines.
accessory of the window & door processing machines
We strictly enforce the ISO9001: 2000 international quality certification system, have created a respected brand in the same industry.
By now we have exported our window and door machines to more than 30 countries, including Russia, French, Turkey, India, Egypt etc.
We sincerely invite all business partners to visit our factory.
