Standard High Pressure Two Stage Hydraulic Pumpaxial Flow Pump Pv016 Pv020 Pv023 - China

price: check with company for price

Standard High Pressure Two Stage Hydraulic Pumpaxial Flow Pump Pv016 Pv020 Pv023

Products Photos Catalog Pressure Stage Photos Catalog

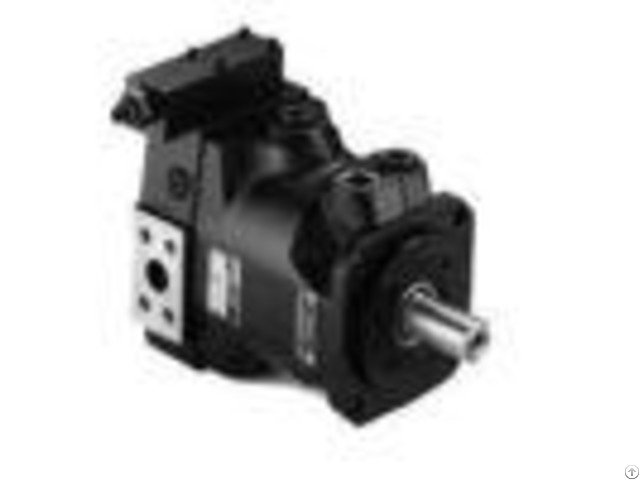

Parker PV axial piston pump Model number: PV016, PV020, PV023, PV040, PV046, PV063, PV071, PV080, PV092, PV140, PV180, PV270 hydraulic parker PV axial piston pump With thru drive for single and multiple pumps Swash plate type for open circuit Technical Data: - - - - | | PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046 | Frame size | | 3 | 3 | 3 | 4 | 4 | 5 | 6 | Max.

Displacement | [cm3/rev] | 63 | 80 | 92 | 140 | 180 | 270 | 360 | Output flow at 1500rpm | [l/min] | 94.5 | 120 | 138 | 210 | 270 | 405 | 540 | Nominal pressure pN | [bar] | 350 | 350 | 350 | 350 | 350 | 350 | 350 | Min.

outlet pressure | [bar] | 15 | 15 | 15 | 15 | 15 | 15 | 15 | Max.

pressure pmax at 20% working cycle | [bar] | 420 | 420 | 420 | 420 | 420 | 420 | 420 | Case drain pressure, continuous | [bar] | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | Case drain pressure, max.

peak | [bar] | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | Min.

Inlet pressure, abs.

| [bar] | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | Max.

Inlet pressure | [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | Input power at 1500 rmp and 350 bar | [kw] | 61.5 | 78 | 89.5 | 136 | 175 | 263 | 350 | Max.

speed at 1bar, abs, inlet pressure | [rpm] | 2800 | 2500 | 2300 | 2400 | 2200 | 1800 | 1750 | Min.

speed | [rpm] | 400 | 400 | 400 | 400 | 400 | 400 | 400 | Moment of intertia | [kgm2] | 0.018 | 0.018 | 0.018 | 0.030 | 0.030 | 0.098 | 0.103 | Weight | [kg] | 59 | 59 | 59 | 90 | 90 | 172 | 180 | - - - - Packaging Details: 1 - Standard export package for Parker piston pump 2 - Special package available.

Delivery Time: 10-15 days after received the payment.


Company Contact:


  • Phone: 86-551-62939227

  • Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
