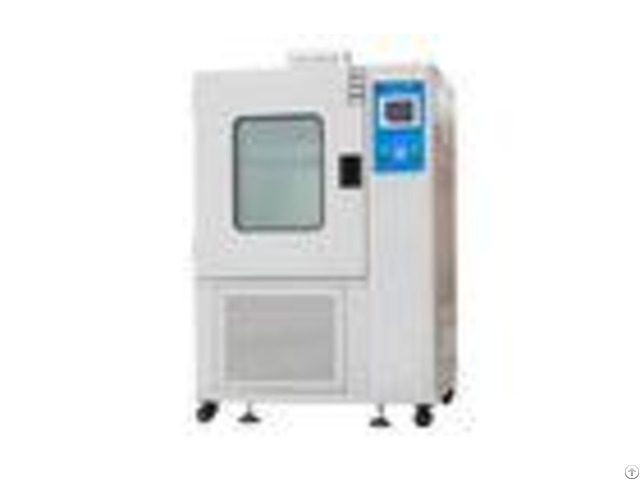

Steady State Climatic Temperature Cycling Chamber Internal 225l Range 20 150 - China

Steady-state Climatic Programmable Rapid Change Temperature Cycling Test Chamber With the ongoing rise in issues affecting the reliability of electronic devices and circuit boards, a better-suited evaluation testing method is needed to respond to issues such as higher device operation temperatures resulting from greater semiconductor integration, changes in device mounting methods such as BGA and CSP, and the use of lead-free solder.

Rapid change temperature testing specifies a test sample temperature variation rate of 15C/minute or less, which is the biggest difference between this method and thermal shock testing.

Since rapid change temperature testing achieves highly repeatable test results, it is used for compliance testing for standards such as JEDEC (JESD 22-A104B).

Rapid change temperature testing is a type of thermal cycling tests developed to improve the failure repeatability of thermal shock tests.

Features: 1, Available internal chamber volumes: 150L, 225L, 416L, 800L and 1000L; 2, To preset different heating and cooling rate: 5/min, 10/min, 15/min; 3, Support rapid change temperature test, condensation test, high temperature/humidity test, temperature/humidity loop test, etc.

4, Complete real time curve display; 5, Conform but not limited standards: MIL-STD-2164, MIL-344A-4-16, GJB-1032-90, GJB/Z34-5.1.6, etc.

Technical Specifications: - - - - Model | Temp Range | Internal Dimension(mm) | Exterior Dimension (mm) | QTH-150KB | -20150 | 500 x 600 x 500 | 800 x 1450 x 1120 | QTH-225KB | 500 x 750 x 600 | 800 x 1620 x 1320 | QTH-416KB | 700 x 850 x 700 | 980 x 1860 x 1600 | QTH-800KB | 1000 x 1000 x 800 | 1350 x 1980 x 1700 | QTH-1000KB | 1000 x 1000 x 1000 | 1350 x 1980 x 1800 | QTH-150KC | -40150 | 500 x 600 x 500 | 800 x 1450 x 1120 | QTH-225KC | 500 x 750 x 600 | 800 x 1620 x 1320 | QTH-416KC | 700 x 850 x 700 | 980 x 1860 x 1600 | QTH-800KC | 1000 x 1000 x 800 | 1350 x 1980 x 1700 | QTH-1000KC | 1000 x 1000 x 1000 | 1350 x 1980 x 1800 | QTH-150KD | -70150 | 500 x 600 x 500 | 800 x 1450 x 1120 | QTH-225KD | 500 x 750 x 600 | 800 x 1620 x 1320 | QTH-416KD | 700 x 850 x 700 | 980 x 1860 x 1600 | QTH-800KD | 1000 x 1000 x 800 | 1350 x 1980 x 1700 | QTH-1000KD | 1000 x 1000 x 1000 | 1350 x 1980 x 1800 | Temperature fluctuation | 0.5 | Temperature uniformity | 2.0 | Heating/Cooling Rate | 3/min, 5/min, 10/min, 15/min, 20/min (optional) | Temperature slope | Linearity or Average | Control system | Large LCD touch screen controller, data can be displayed directly | Inner materials | SUS#304 Stainless steel | Outer materials | Cold rolled steel sheet powder baking paint | Insulation material | Rigid polyurethane foam | Cooling mode | 1, Cooling system (No consumables, suitable for long-term high frequency test) 2, Liquid nitrogen assist in cooling (Liquid nitrogen is a material used for short and low frequency test) | Safety devices | Electric leakage protection, Short circuit protection, Overheat protection, Water shortage protection, Dry burn protection switch alarm device | Power Supply | AC220/380V, 50/60HZ, | Note | 1, The performance values are no specimen inside the test area.

2, At 20C ambient temperature, relative humidity 65%RH, rated voltage | - - - -

Company Contact:

• Posted By: DongGuan Q1-Test Equipment Co., Ltd.

• Phone: 86-769-22179727

• Address: No. 88, Jiaolian Yiheng Road, Wanjiang district, DongGuan, China (523046), DongGuan , guangdong , China

• Email:

• Website: https://www.temperaturehumiditytestchamber.com

• Business Description: DongGuan Q1-Test Equipment Co., Ltd .

  Mainly specialized in manufacturing, developing and marketing various environmental testing equipment like programmable temperature and humidity test chamber QTH series, industrial drying oven, burn-in chamber, salt spray/corrosion test chamber QCC series.
