Stereoscopic Microscopewith Infinity Plan Objective Stereo Microscope For Electronics - China
price: contact company for price

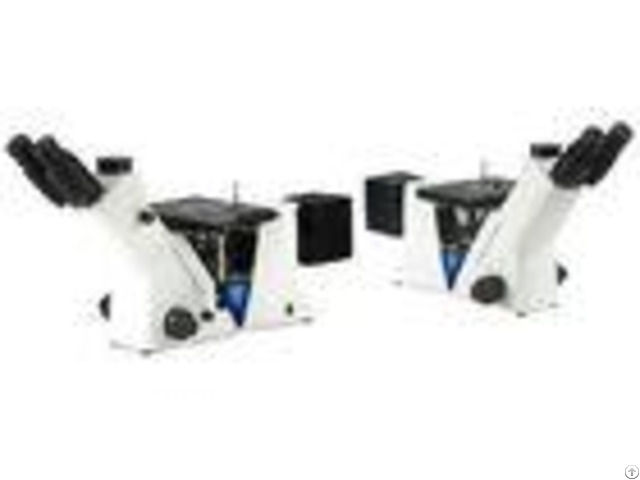

Trinocular Quintuple Inverted Metallurgical Microscope with Infinity Plan Objective Inverted Metallurgical Microscope iMet-Y400 series are widely used in observation & analysis of metallurgical organization in mechanical industry, research of geological & mineral department and viewing and measuring crystal, integrate circuit, micro-electronics etc.
in electronic industry.
It is the best choice of factories, academies, scientific research organization and electronic industrial.
Technical Specifications: - - - - Item | Specification | iMet-Y400 | iMet-Y400BD | Eyepiece | WF10/22mm (adjustable) | | | WF10/22mm (adjustable, reticule 0.1mm) | | | Metallurgical LWD Infinity Plan Objectives | LPL 5/0.13 W.
D=24.23mm | | | LPL 10/0.25 W.D.= 18.48mm | | | LPL 20/0.40 W.D.= 8.35mm | | | LPL 50/0.70(S) W.D.= 1.95mm | | | LPL 40/0.65 W.D.= 3.90mm | | | LPL 80/0.80(S) W.D.= 0.85mm | | | LPL 100/0.90(S) W.D.= 1.00mm | | | Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field | M PLAN 5/0.13 BD W.
D=24.23mm | | | M PLAN 10/0.25 BD W.D.= 18.48mm | | | M PLAN 20/0.40 BD W.D.= 8.35mm | | | M PLAN 50/0.70 BD W.D.= 1.95mm | | | M PLAN 80/0.80 BD W.D.= 0.85mm | | | Seidentopf Trinocular Head | Inclined 30, interpupilary distance: 48-76mm Light distribution (both): 100: 0 (100% for eyepiece) 80: 20 (80% for trinocular head, and 20% for eyepiece) | | | Nosepiece | Quintuple | | | Quadplex (specially for bright /dark field objectives) | | | Mechanical Stage | Three layers, Stage size: 210 mm180mm, Moving range: 5050mm, Scale: 0.1mm | | | Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2m.
| | | Polarizing Unit | Polarizer/Analyzer | | | Illumination | 12V/50W Halogen (Input voltage: 100V240V) | | | Filter | Blue | | | Green, Amber, Grey | | | C-mount | 1C-Mount | | | 0.5 C-Mount (focus adjustable) | | | Note: ""In Table Is Standard outfits, "" Is Optional Accessories.
Packing Size: 660mm590mm325mm, Gross Weight: 17 kg, Net Weight: 12.5 kg | - - - -
