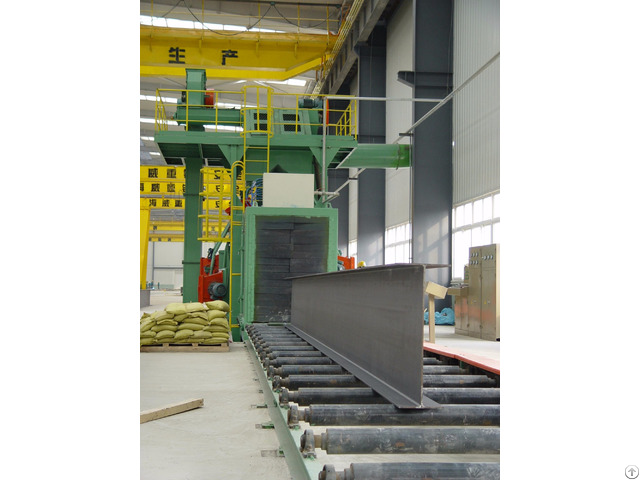

Structural Steel Through Type Shot Cleaning Machine - China

Structural steel shot blasting/cleaning machine is mainly applied to the structural material, H steel, profiled steel, T steel, U steel, welded steel structure, cylindrical pipes and automotive parts, motorcycle parts, etc., and it’s commonly used for the large parts surface removal of sand, rust, oxide and various residue, hardening and finishing the workpiece surface.

It will impose strong blasting on original steel and castings surface, remove its rust layer, welding slag and scale, and thus obtain uniform metallic luster, in order to improve the quality of painting and anti-corrosion of steel.

At anti-corrosion treatment works, Surface cleaning requirements of rolled steel product (steel sheet, rolled sections, steel pipe and a simple steel structure)are strict, there will be no rust and dirt.

Mechanical descaling by shot blasting machine, has been recognized in production and has been widely used.

Device combination system makes the cleaning process reliable, economical and ensures workpiece cleanliness requirements.

Shot blasting machine system has high degree of automation, with a user-specified loading and unloading unit, fully automatic controlled by PLC.

The entire system can be used as a standalone device or integrated into the entire production line of rust removal, anti-corrosion and heat treatment.

Item Unit QT10 QT12 QT15 QT20 QT30 QT40

Cleaning Width mm 1000 1200 1500 2000 3000 4000

Room Inlet Size mm 1000*

400 1200*

400 1500*

400 2000*

400 3000*

800 4000*

400

Workpiece Length mm 1200~

12000 1200~

12000 1200~

12000 1200~

12000 2400~

12000 4500~

18000

Roller Conveying Speed m/min 0.5~4 0.5~4 0.5~4 0.5~4 0.5~4 2~8

Steel Plate Thickness mm 3~60 4~60 4~60 4~60 4~110 4.5~100

Profile Steel Specification -- -- [≤20＜

≤16# [≤20＜≤16# [≤20＜≤16# 60*8~30*1000 --

Shot Blast Volume kg/min 4*250 4*250 4*250 6*250 6*480 8*480

First Load Volume kg 4000 4000 4000 4500 8000 11000

Paintbrush (Scraper)

Height Adjustment mm nil 200 350 450 850 900

Ventilation Volume m3/h 12000 17560 19000 19550 28050 38000

Total Power

(free of dust removal) kw 78 80 115 160 260 360
