Temperature Testing Equipmentoffer Engineer Service Overseas Stability Test Chamber - China

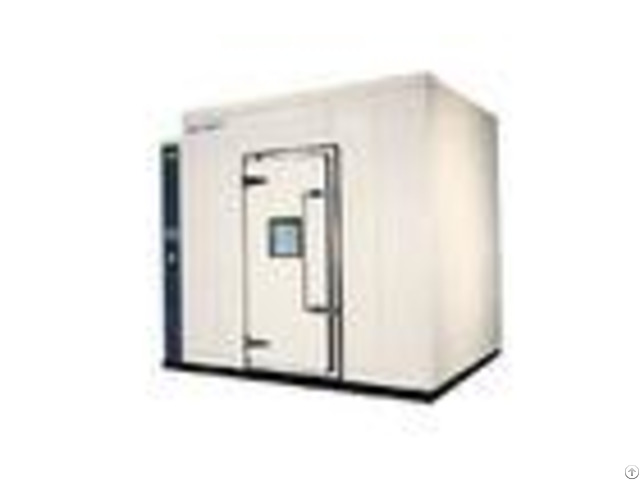

Lab Chamber Walk in Temperature Humidity Test Equipment Offer Engineer Service Overseas On Site Walk-In Chambers are available in a variety of models and sizes to meet virtually any requirement and/or test application.

These chambers are typically used for testing or storing products that require a large capacity chamber.

Q1-Test provides two primary types of walk-in chamber designs: # # Modular walk-in chambers utilize panelized, foam panels that are connected together to form various size rooms.

# Welded (Solid) walk-In chambers are fully welded chambers that can withstand high temperature and high humidity along with fast temperature change rates.

Welded Walk-In chambers are ideal for test requirements with temperature greater than 80C.

Drive-In chambers are also available for full vehicle testing and multiple environmental simulation exposure.

Every chamber can be tailor-designed to meet your requirements and specifications and can integrate with vibration systems.

Corresponding Standard: 1 - GB11158 Technical conditions for high-temperature testing room 2 - GB10589-89 Technical conditions for low-temperature testing room 3 - GB/T10586-89 technical conditions for humidity testing room 4 - GB/T2423.1-2001 testing methods for low-temperature 5 - GB/T2423.2-2001 testing methods for high-temperature 6 - GB/T2423.3-93 technical conditions for humidity testing room 7 - GB/T2423.4-93 testing method for alternating hot and humid 8 - IEC60068-2-1.1990 testing methods for low-temperature 9 - IEC60068-2-2.1974 testing methods for high-temperature 10 - GJB150.3 High-temperature test 11 - GJB150.4 Low-temperature test 12 - GJB150.9 muggy test 13 - GB/T2423.22 temperature test Applicable Industry: used in defense industry, aerospace industry, automation components, automotive parts, electrical and electronic parts, plastics, chemical, pharmaceutical industries and related products.

Technical Parameters: - - - - Model | QTHR-12.9 | Size (cm) | According to customer specified size for design | Temprature range | -65 degree ~+80 degree ( A: 0 degree, B: -20 degree, C: -40 degree, D: -65 degree ) | Humidity range | 20%~95%R.H. | Accuracy/uniformity | 0.1 degree, 0.1%R.H. / 1.5 degree, 5.0%R.H. | Accuracy/volatility | 1.0 degree, 2.0%R.H./0.5 degree, 3.0%R.H. | Cooling time | About 4.0/minute | Inside material | stainless steel | Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | Cooling system | Water-cooled / two-stage compressor | Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system | accessories | recorder(option), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | controller | Korea TEMI or Japan OYO brand option | compressor | Tecumseh Brand | power | 1 220VAC10% 50/60Hz & 3 380VAC10% 50/60Hz | - - - - Features: 1, large has a very wide range of controlling the temperature and humidity that can fulfil users needs.

It is stable, balanced heating and humidification performance, it also can be high accuracy and high stability for temperature and humidity control performance.

2, largeWalk-in constant temperature and humidity testing machine is equipped with high-precision intelligent thermostat, controller of temperature and humidity using touch-screen display.

Optional equiped with temperature and humidity records.

3, Refrigeration circuit of largeWalk-in constant temperature and humidity testing machineautomatically select to operate performance of refrigeration circuits, so that it starts cooling at high-temperature state.

4, Door of largeWalk-in constant temperature and humidity testing machine with large viewing window for observation of the testing sample.

5, largeWalk-in constant temperature and humidity testing machine is equipped with advanced security, protective device leak circuit breakers, over-temperature protective device, lack phase protective devices and lack water protector.
