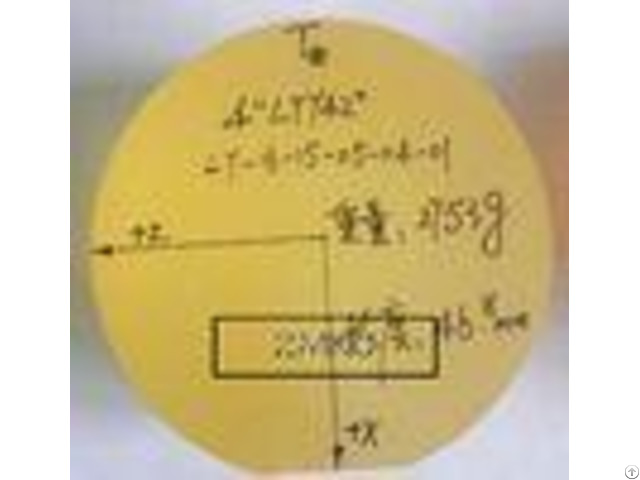

Y 42 Lithium Tantalate Wafers 4 Inch Dia 100 Mm With Thickness 46mm - China

4inch LiTaO3 wafer, LT wafer for saw, LiTaO3 crystal optical wafer, LITaO3 optical wafer Piezoelectric Crystal Lithium Tantalate LT LiTaO3 crystals Lithium Niobate (LiNbO3 or LNB) and Lithium Tantalate (LiTaO3 or LTA) possess a combination of unique electro-optical, acoustic, piezoelectric, pyroelectric and non-linear optical properties making it a suitable material for applications in acoustic, electro-optical and non-linear optical devices, high-temperature acoustic transducers, receivers-transmitters of acoustic vibrations, air force acceleration meters, acoustic wave delay lines, deflectors, generators of non-linear distorted waves, acoustic filters, electro-optical Q-modulators (Q-switch), encoders-decoders, filters in television receivers, video-recorders and decoders, converters, frequency doublers and resonators in laser systems, non-linear elements in parametric light generators, etc.

An indispensable condition of some of these applications is a high degree of optical uniformity of Lithium Niobate crystals used for fabrication of active elements.

Some other crystals of LiNbO3 series are available, including LiNbO3 doped with Fe, Zn, Gd, Cu, Y, B, Er etc.

For some applications similar in properties to Lithium Tantalate (LiTaO3) crystal is more advantageous than LiNbO3 (E-O modulators, pyroelectric sensors etc.

).

Lithium Tantalate exhibits unique electro-optical, pyroelectric and piezoelectric properties combined with good mechanical and chemical stability and wide transparency range and high optical damage threshold.

This makes LiTaO3 well-suited for numerous applications including electro-optical modulators, pyroelectric detectors, optical waveguide and SAW substrates, piezoelectric transducers etc.

MolTech can offer parts cut from high quality boules grown along X axis, fully poled, with dia.

and length of up to 60 mm.

- - - - Properties (LiTaO3) | | Transmission Range (50% of total transmission) | 0, 275 - 5, 25 m (thickness 8 mm) | Refractive Index | no = 2, 139, ne = 2, 139 @633 nm | Reflective Loss | 13, 17%@0, 633 m | Reststrahlen | | Density | 7.4564 g/cm3 | Melting Point | 1650C | Molecular Weight | 235, 89 | Thermal Conductivity | 4, 6 W/mK ; 8, 78 W/mK | Heat Capacity | 424 J/(Kkg) | Thermal Expansion | | Hardness (Mohs) | 750 | Young`s Modulus | | Shear Modulus | | Bulk Modulus | | Rupture Modulus | | Elastic Coefficient | C11 = 230; C12 = 42; C13= 79; C14= -11; C33= 276; C44 = 95, 9 GPa | Dielectric Constant | 41-53 @298K | Solubility in Water | unsoluble | Crystal Structure | Single crystal, synthetic | Crystal Type | trigonal, a = 5, 15 c = 13, 77 nbsp] | Cleavage Planes | no cleavage | Poisson Ratio | | Application | electro optic Q-switch, integrated optical substrate, sensor, frequency converter | Remarks | stoichiometric or congruent | - - - - Feature Piezoelectric Crystal LiTaO3 crystals - - - - Excellent photoelectric property | High Damage Threshold | High Curie Temperature | - - - - LiTaO3 crystals Ingot specifications Diameter 50.8mm 76.2mm 100mm 150mm Thickness 60mm 60mm 60mm 40mm Tolerance 0.3mm Orientation: Y-36, Y-42, Y-112 Dope: commonFe, Zn, Gd Packing Delivery - - - - Packaging | products single cassette or 25 pcs boxes in cleaning room | Inner packing Foam plastics anti-vibration cushion liner for package | Outer packing five layers corrugated carton paper box or as required | Shipping | by air UPS, DHL, Fedex, TNT, EMS, SF, etc | | - - - -
