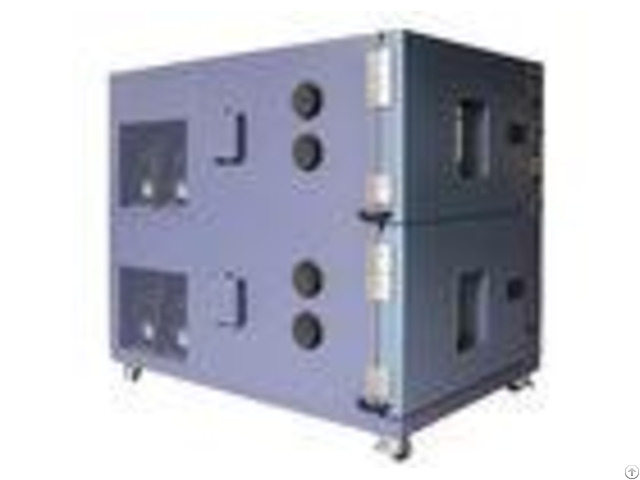

Constant Climatic Temperature Humidity Chamber Double Layer Insulated Airtight Doors - China
price: check with company for price
Programmable constant climatic humidity temperatue chamber Programmable constant climatic humidity temperatue chamber Features : 1 - Graceful appearance, circularly shaped body, surface treated with mist strips, .
2 - Rectangular double-paned viewing window for the observation of sample under test, with interior lights.
3 - Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4 - Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5 - French Tecumseh brand is used as compressor, with environment friendly refrigeration R23, R404A.
6 - LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time 7 - The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.
8 - Casters are provided for ease of mobility, with strong positioning screws.
Programmable constant climatic humidity temperatue chamber Applications: constant temperature and humidity stability Test Chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity.
It is applied for for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
- - - - Model | SMC-80-CC-FB | SMC-150-CC-FB | SMC-225-CC-FB | SMC-408-CC-FB | SMC-800-CC-FB | SMC-1000-CC-FB | SMC-1500-CC-FB | Temperature | Temperature control range | -70180 (A: 0180;B: -20180C: -40180; D: -70180) | Temperature fluctuation | 0.5 | Cooling rate | 180.0-70.0 Within 100 mins 1.03.0/min | Heating rate | -70.0180.0 Within 60 mins 3.05.0/min | Temperature uniformity | 1.5 (-40.0100.0) | 2.0 (100.1180.0or-40.0-70.0) | Humidity | Humidity control range | 10.0%RH98.0%RH (60 above corresponds to 10%RH) | Humidity fluctuation | 1.0% RH | Humidity uniformity | 2.0RH | Material / components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | Semi-closed Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Humidifier | Steam humidifier | Options | Standard configuration | 2 100MM pressure relief port, 4 explosion-prood chains | Multipoint temperature monitor | Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally | Size | Interior size(mm) W*H*D | 500*500 *400 | 500*600 *500 | 500*750 *600 | 800*850 *600 | 1000*1000 *800 | 1000*1000 *1000 | 1200*1000 *1250 | Outer size(mm) W*H*D | 700*1680 *1180 | 700*1720 *1275 | 700*1930 *1290 | 1000*2050 *1400 | 1200*2100 *1590 | 1200*100 *1780 | 1400*2100 *2030 | Volume(m) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | Weight | 280 | 380 | 450 | 620 | 680 | 840 | 955 | Operating ambient temperature | +5 ~ 35 | Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - -
Company Contact:
- Phone: 86-769-81182799
- Address: NO.88 Songchang Road,Songbotang,Changping ,Dongguan,Guangdong, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Our products upgrade constantly and our customers come portable batteries, power batteries, battery, lithium batteries, lead-acid, new energy vehicles, electric bicycles, electric tools, electric systems, solar, military, universities research and other technology industries fields.
