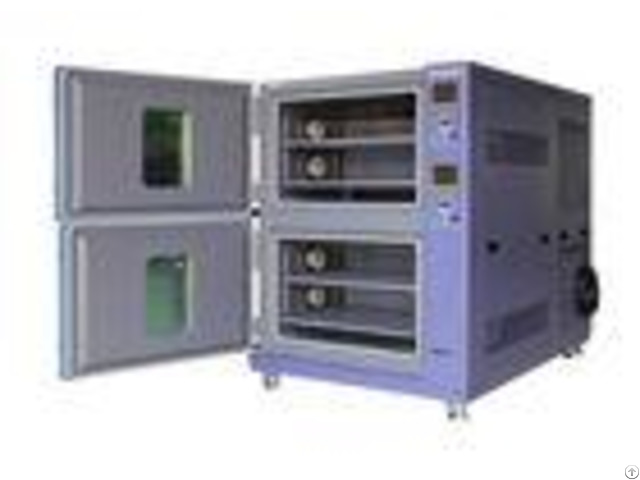

Constant Temperature Test Chamber Stainless Steel Plate High Speed Heater - China

Programmable constant temperatue chamber Technical specifications: - - - - Model | SMC-80-CC-FB | SMC-150-CC-FB | SMC-225-CC-FB | SMC-408-CC-FB | SMC-800-CC-FB | SMC-1000-CC-FB | SMC-1500-CC-FB | Temperature | Temperature control range | -70180 (A: 0180;B: -20180C: -40180; D: -70180) | Temperature fluctuation | 0.5 | Cooling rate | 180.0-70.0 Within 100 mins 1.03.0/min | Heating rate | -70.0180.0 Within 60 mins 3.05.0/min | Temperature uniformity | 1.5 (-40.0100.0) | 2.0 (100.1180.0or-40.0-70.0) | Humidity | Humidity control range | 10.0%RH98.0%RH (60 above corresponds to 10%RH) | Humidity fluctuation | 1.0% RH | Humidity uniformity | 2.0RH | Material / components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | Semi-closed Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Humidifier | Steam humidifier | Options | Standard configuration | 2 100MM pressure relief port, 4 explosion-prood chains | Multipoint temperature monitor | Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally | Size | Interior size(mm) W*H*D | 500*500 *400 | 500*600 *500 | 500*750 *600 | 800*850 *600 | 1000*1000 *800 | 1000*1000 *1000 | 1200*1000 *1250 | Outer size(mm) W*H*D | 700*1680 *1180 | 700*1720 *1275 | 700*1930 *1290 | 1000*2050 *1400 | 1200*2100 *1590 | 1200*100 *1780 | 1400*2100 *2030 | Volume(m) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | Weight | 280 | 380 | 450 | 620 | 680 | 840 | 955 | Operating ambient temperature | +5 ~ 35 | Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - - Features: # Programmable setup is available, max 120 sets, 1200 segments and 999 cycles.

# The refrigeration units are supplied by Tecumseh(France).

# A large TEMI super induction LCD touch screen helps to perform operations more conveniently.

# A test graph indicator provides a continuous performance progress report.

# A P.l.D auto counter enables continuous immediate temperature and humidity error correction.

# A microprocessor control unit enables temperature and humidity fluctuation to be applied dividedly.

# A 5 cm port is centered on the left side of the chamber for ease of cable routing.

# Mist-free viewing window and interior light provide a hassle free viewing workspace.

# Swivel casters provide easy mobility and flexibility in a variety of laboratory conditions.

# Four-tiered safety protection system.

# RS-232 communication interface( optional).

Personal computer can be easily connected to this testing equipment to enhance display testing status, testing results, program settings, operation log, etc.
