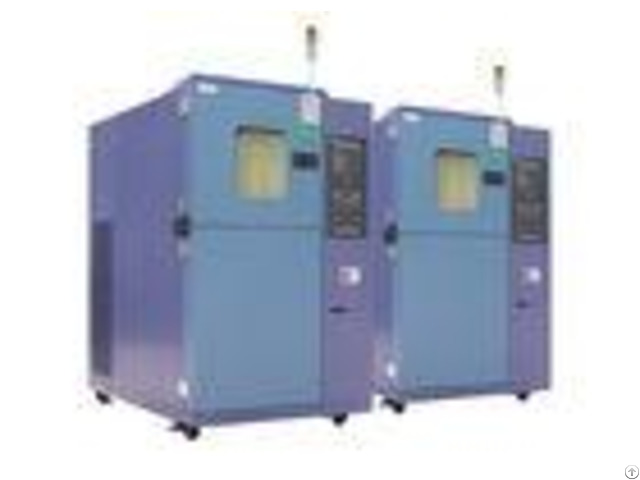

Custom Environmental Simulation Thermal Shock Test Chamber For Car Accessory Testing - China
price: check with company for price
Customized Environmental Simulation Thermal Shock Test Chamber For Car Accessary Testing Customize environmental simulation thermal shock testchamber for car accessary testing application: PCB environmental thermal shocktesting chamber is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time.
Customize environmental simulation thermal shock testchamber for car accessary testing features: 1.3 zones design: high temperature, low temperature, and testing area, The test sample is in static mode.
2 - Using touch-control graph control as operation interface, easy to operate.
3 - Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4 - For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles are 9999 times.
5 - The system can be used for automatic Circulation Shock or manual selective shock.
6 - Adopt binary cooling system, with quick cooling effect, water cooled.
7 - RS-232 and RS-485 communication.
Customize environmental simulation thermal shock testchamber for car accessary testing technical parameters: - - - - Model | SM-50-3P-A | SM-80-3P-A | SM-100-3P-A | SM-150-3P-A | SM-200-3P-A | SM-300-3P-A | SM-500-3P-A | Temperature | Temperature impact range | -70150 (A: -45150;B: -70150) | Temperature fluctuation | 1.0 | Low temperature precooling time | 25.0-70.0 Within 60 mins 1.03.0/min | High temperature preheating time | 25.0200.0 Within 60 mins 3.07.0/min | Temperature conversion time | 3S | Temperature recovery time | Within 5 mins | Within 10 mins | Material / components | Internal material | Stainless steel(SUS304) | External material | Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | France Tecumseh, Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Size | Interior size(mm) W*H*D | 350*400 *350 | 400*500 *400 | 500*500 *400 | 500*600 *500 | 650*460 *670 | 960*460 *670 | 960*650 *800 | Outer size(mm) W*H*D | 1400*1750 *1750 | 1450*1850 *1800 | 1550*1850 *1800 | 1550*2050 *2050 | 1700*2000 *2200 | 2050*2000 *2250 | 2050*2150 *2450 | Volume(L) | 50L | 80L | 100L | 150L | 200L | 300L | 500L | Operating ambient temperature | +5 ~ 35 | Power supply | 380V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz | 380V AC 50/60Hz | Controller | SANWOOD SH5600: Equipped with RS232 port(7.0 inch controller) USB data export ) | - - - -
Company Contact:
- Phone: 86-769-81182799
- Address: NO.88 Songchang Road,Songbotang,Changping ,Dongguan,Guangdong, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Our products upgrade constantly and our customers come portable batteries, power batteries, battery, lithium batteries, lead-acid, new energy vehicles, electric bicycles, electric tools, electric systems, solar, military, universities research and other technology industries fields.
