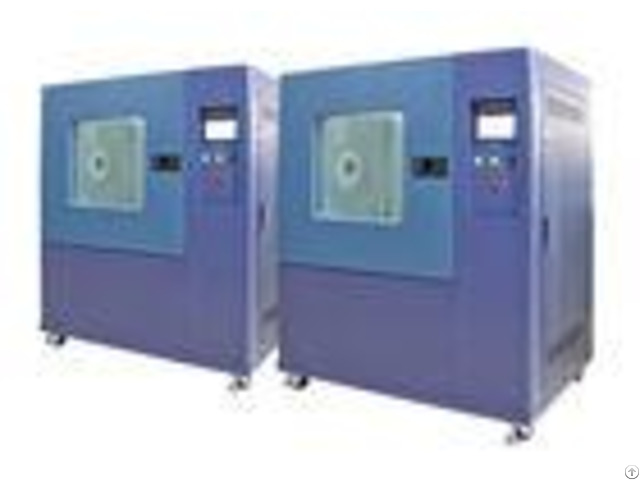

Dustproof Environmental Dust Test Chamber Imported Lcd Touch Screen Controller - China
price: check with company for price
IEC 60529 Dustproof Lab Environmental Dust Test Chamber/ Sand And Dust Test Chamber Brief Description: LCD Controller Sand And Dust Led Testing Equipment For Dustproof Test is used to test the working ability of the specimen under the condition of free setting dust and no obvious air flow, or place in blast air and large sand dust outdoor site, and other similar site conditions.
Application: It is mainly applied in LED, electrician, electron, vehicle, motorcycle and other products, outer shell with sealing property Test Method: 1 - GB2423.37-2006 2 - IEC 60068-2-68-1994 3 - GB4208-2008/IEC60529: 2001 shell entrench level 4 - GJB150.12-2009 dust test method(dustproof test) 5 - GB7000-1-2007 chapter 9 requirement for shell entrench test 6 - GB10485 dustproof test method and equivalent JIS, DIN, MIL test standard Features: 1 - Control cabinet and test chamber are installed together 2 - Test chamber inner shell is funnel type, shaking fan help recycle the dust 3 - Special dust collector 4 - Use flake radiating heat tube P.I.D.
control heat to reach the temperature balance 5 - Use high speed specialized fan to blow the test dust to test space 6 - Use vibration motor to shake and recycle the dust to dust collector from the inner chamber wall 7 - RS-232 communication interface, could be used for monitoring and remote control the system, record the test data 8 - Imported LCD touch screen controller TEMI880 Technical Specifications: - - - - Model | SM-SC-500C | SM-SC-1000C | SM-SC-2000 | Testing room volume | 500L | 1000L | 2000L | Technical characteristics | Standard spacing of metal screens | 50um | Standard spacing between lines | 75um | Amount of talc | 2Kg/m2~4Kg/m2 | Dustfall form | 1 - Free fall dust type : The dust is blown to 1/5 of the tank top by centrifuge to make it free settling | 2 - Dust blowing: Bottom air blast, three grades pressure is adjustable | Size | Inner size(mm)W*H*D | 800*800*800 | 1000*1000*1000 | 1000*2000*1000 | Outer size(mm)W*H*D | 1450*1700*1000 | 1650*1900*1200 | 1650*2900*1200 | Control system | Testing room | Advanced brushed stainless steel | Shell | Cold plate rust proof and plastic spraying treatment | Operation panel | Digital smart touch key input | Operation mode | Constant operation | Input | PT-100 sensor | Auxiliary function | Timing | Standard configuration | With dust drying device, vibrator, sample holder, observation window (door) | Safety protection | Overload breaking protection, earthing protection, etc.
| Power supply | AC380V TN-S | - - - -
Company Contact:
- Phone: 86-769-81182799
- Address: NO.88 Songchang Road,Songbotang,Changping ,Dongguan,Guangdong, Dongguan , Guangdong , China
- Email:
Published date: January 9, 2018
- Business Description: Our products upgrade constantly and our customers come portable batteries, power batteries, battery, lithium batteries, lead-acid, new energy vehicles, electric bicycles, electric tools, electric systems, solar, military, universities research and other technology industries fields.
