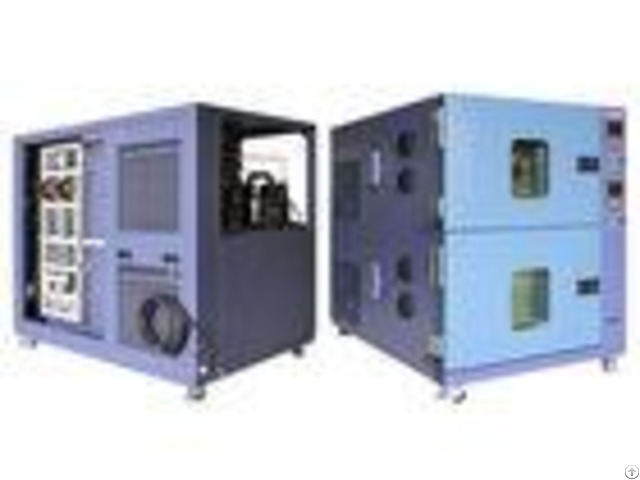

Environmental High Low Temperature Test Chamber Stainless Steel Exterior - China

Environmental high low temperatue chamber High and low temperature test chamber Temperature chamber models designed to save lab space The Standard temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements.

Lowest temperature: -20 or -70C (-4 or -100F) Highest temperature: 180C (354F) The extended temperature ranges of the Standard series make testing at extreme conditions possible without buying a larger, stand-alone chamber.

Two chamber sizes are available, as well.

The programmer includes a temperature alarm as just one part of Grande's three-tiered over-temperature protection system.

A thermal fuse and a user-set independent limit are also included.

In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.

Features High performance and quiet operation (65 dBa) Space-saving footprint, designed for flush installation to wall Stainless steel exterior Full thermal break around doorframe One 50mm (2") or 100mm (4") diameter cable port on left, with flexible silicone plug Three levels of overheat protection, plus overcool protection Easy lift-off service panels, electrical access on left Detachable eight-foot power cord with plug ETL listed electrical panel conforming to UL 508A Touch-screen programmer/controller with Ethernet Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end) One event relay for external device control, plus specimen power interlock relay for safety Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring.

USB and RS-232 ports available, as well.

Technical parameters: - - - - Model | SMC-80-CC-FB | SMC-150-CC-FB | SMC-225-CC-FB | SMC-408-CC-FB | SMC-800-CC-FB | SMC-1000-CC-FB | SMC-1500-CC-FB | Temperature | Temperature control range | -70180 (A: 0180;B: -20180C: -40180; D: -70180) | Temperature fluctuation | 0.5 | Cooling rate | 180.0-70.0 Within 100 mins 1.03.0/min | Heating rate | -70.0180.0 Within 60 mins 3.05.0/min | Temperature uniformity | 1.5 (-40.0100.0) | 2.0 (100.1180.0or-40.0-70.0) | Humidity | Humidity control range | 10.0%RH98.0%RH (60 above corresponds to 10%RH) | Humidity fluctuation | 1.0% RH | Humidity uniformity | 2.0RH | Material / components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | Semi-closed Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Humidifier | Steam humidifier | Options | Standard configuration | 2 100MM pressure relief port, 4 explosion-prood chains | Multipoint temperature monitor | Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally | Size | Interior size(mm) W*H*D | 500*500 *400 | 500*600 *500 | 500*750 *600 | 800*850 *600 | 1000*1000 *800 | 1000*1000 *1000 | 1200*1000 *1250 | Outer size(mm) W*H*D | 700*1680 *1180 | 700*1720 *1275 | 700*1930 *1290 | 1000*2050 *1400 | 1200*2100 *1590 | 1200*100 *1780 | 1400*2100 *2030 | Volume(m) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | Weight | 280 | 380 | 450 | 620 | 680 | 840 | 955 | Operating ambient temperature | +5 ~ 35 | Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - -
