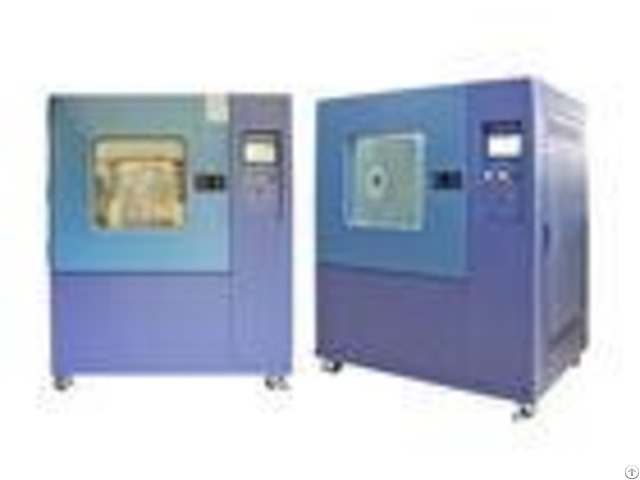

Multi Function Electronic Dust Test Chamber Mirror Sus304 Stainless Steel Material - China

Sand and Dust Test Chamber IP Test Equipment Product structure description: Housing structure: mainly by studio, frame, carton, the door of the oven and heat insulation filling materials, heating system, control circuit system, control execution system, auxiliary components composition (vacuum pump, etc.

), Studio material: mirror SUS304 stainless steel;

Carton material: surface atomization SUS304 stainless steel;

The door of the oven: 1000 * 1000 * 80 mm, toughened glass Mosaic central as observation window, size: 500 * 500 mm; The material and main body use SUS304 materials, intermediate using polystyrene foam forming, strong, heat insulation, The body heat insulation filling material: polystyrene foam forming;

Control circuit system mainly used material: schneider communication relay, chengtai leakage air switch, JinLongYu electric wire electric cable;

To control execution system: adopting imported touch programming liquid crystal display TEMP880 controller (attach controller detailed introduction);

Heating system: U type electric heat pipe, stainless steel material, power: 2 kw;

Vacuum executive SAP thing: vacuum pump gas flow: 0 ~ 6 l/min, 0 ~ 2 kpa; Vacuum gauge, air filter, centrifugal blower, etc.

; Vibration device: eccentric wheel motor;

Test lead hole: a diameter of 50 mm, inside and outside the airtight cover;

Safety device: leakage power-off protection, overload fuse protection, fan overheating protection;

Work indoor power socket: one, the dust can be divided into socket.

Others: 1 - 5.7 inch truecolor touch BoBing;

2 - Two kinds of control mode: fixed value/program;

3 - Sensor types: PT100;

4 - Output mode: PID control output / 4-20 ma analog output (1-5 v) / (0-10 v can be arbitrary choice);

5 - Control output signal: a.

8 way switch auxiliary control signal (IS, T, AL control signal); B.

with standard 10 switch signal relay output (optional 20 relay output);

6 - Temperature measurement range: 90.00, 200.00, 90.00, 300.00, can choose any)

Error + / - 0.2 ;

7 - Special functions: blow dust, vibration, vacuum;

8 - Communication interface (RS232C/RS485 communication, the longest distance of 1.2 km [fiber can reach 30 km];

9 - Interface language types: Chinese/English.

10 - The program editor: programmable 120 program, each program maximum programmable 99 section, a total of 1200 segments of;

11 - The product show clear intuitive, the programmable control system convenient operation and stable performance, work more efficient;

12 - Outlook size: 184 x 144 x 94 (mm) (LWH);

13 - Installation open hole size: 173 x 133 (mm) (long x width); Specification - - - -

Model | SM-SC-500C | SM-SC-1000C | SM-SC-2000 | Testing room volume | 500L | 1000L | 2000L | Technical characteristics | Standard spacing of metal screens | 50um | Standard spacing between lines | 75um | Amount of talc | 2Kg/m2~4Kg/m2 | Dustfall form | 1 - Free fall dust type : The dust is blown to 1/5 of the tank top by centrifuge to make it free settling | 2 - Dust blowing: Bottom air blast, three grades pressure is adjustable | Size | Inner size(mm)W*H*D | 800*800*800 | 1000*1000*1000 | 1000*2000*1000 | Outer size(mm)W*H*D | 1450*1700*1000 | 1650*1900*1200 | 1650*2900*1200 | Control system | Testing room | Advanced brushed stainless steel | Shell | Cold plate rust proof and plastic spraying treatment | Operation panel | Digital smart touch key input | Operation mode | Constant operation | Input | PT-100 sensor | Auxiliary function | Timing | Standard configuration | With dust drying device, vibrator, sample holder, observation window (door) | Safety protection | Overload breaking protection, earthing protection, etc.

| Power supply | AC380V TN-S | - - - -
