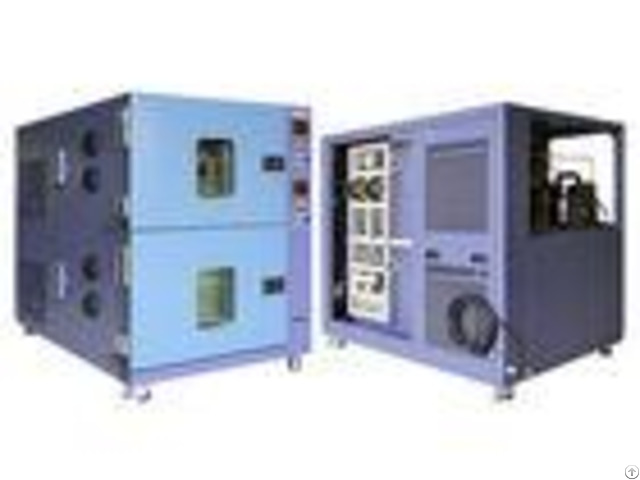

Resist Heat Temperature Test Chamber Simulate Different Environmental Condition - China

High and Low Temperatue Test chamber CE certification SGS certified sus#304ss Long history manufacturer (established in 1994) Fast delivery High and low temperature test chamber can simulate different environment condition.

It's appropriate for testing material performance (resist heat, resist dry, resist humidity and resist cold).

This test chamber is mainly used for the electrical, electronics, and their original devices, and other materials at high temperature, low temperature environment storage, transportation, use of adaptive testing.

The test equipment is mainly used for products in accordance with national standards or user-defined requirements, at low temperature, high temperature, conditions, the products of the physical and other relevant characteristics of environmental simulation tests, through testing, to determine product performance if meet the intended requirements for the design, improvement, identification and factory inspection purposes.

- - - - Model | SMC-80-CC-FB | SMC-150-CC-FB | SMC-225-CC-FB | SMC-408-CC-FB | SMC-800-CC-FB | SMC-1000-CC-FB | SMC-1500-CC-FB | Temperature | Temperature control range | -70180 (A: 0180;B: -20180C: -40180; D: -70180) | Temperature fluctuation | 0.5 | Cooling rate | 180.0-70.0 Within 100 mins 1.03.0/min | Heating rate | -70.0180.0 Within 60 mins 3.05.0/min | Temperature uniformity | 1.5 (-40.0100.0) | 2.0 (100.1180.0or-40.0-70.0) | Humidity | Humidity control range | 10.0%RH98.0%RH (60 above corresponds to 10%RH) | Humidity fluctuation | 1.0% RH | Humidity uniformity | 2.0RH | Material / components | Internal material | Adopts 1.2mm thickness stainess steel(SUS304) | External material | Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying | Heat insulating material | 100mm thickness polyurethane plate10mm thickness mineral wool | Fan | Centrifugal blower | Compressor | Semi-closed Germany Bock, Germany Bitzer | Condenser | Air cooling, water cooling | Refrigerant | R404A, R23, R508 | Evaporator | Fin - and - Tube Heat Exchanger | Heater | Nickel chromium alloy heating wire | Humidifier | Steam humidifier | Options | Standard configuration | 2 100MM pressure relief port, 4 explosion-prood chains | Multipoint temperature monitor | Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products | C02 fire extinguisher | Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning | C0, H2 gas detector | When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard | Exhaust valve | When the test sample produces harmful gas, ventilate and exhaust internally | Size | Interior size(mm) W*H*D | 500*500 *400 | 500*600 *500 | 500*750 *600 | 800*850 *600 | 1000*1000 *800 | 1000*1000 *1000 | 1200*1000 *1250 | Outer size(mm) W*H*D | 700*1680 *1180 | 700*1720 *1275 | 700*1930 *1290 | 1000*2050 *1400 | 1200*2100 *1590 | 1200*100 *1780 | 1400*2100 *2030 | Volume(m) | 80L | 150L | 225L | 408L | 800L | 1000L | 1500L | Weight | 280 | 380 | 450 | 620 | 680 | 840 | 955 | Operating ambient temperature | +5 ~ 35 | Power supply | 220V AC 50/60Hz 22A | 220V AC 50/60Hz 31A | 220V AC 50/60Hz 33A | 380V AC 50/60Hz 17A | 380V AC 50/60Hz 25A | 380V AC 50/60Hz 27A | 380V AC 50/60Hz 50A | Controller | Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500, South Korea TEMI-2700 | - - - -
