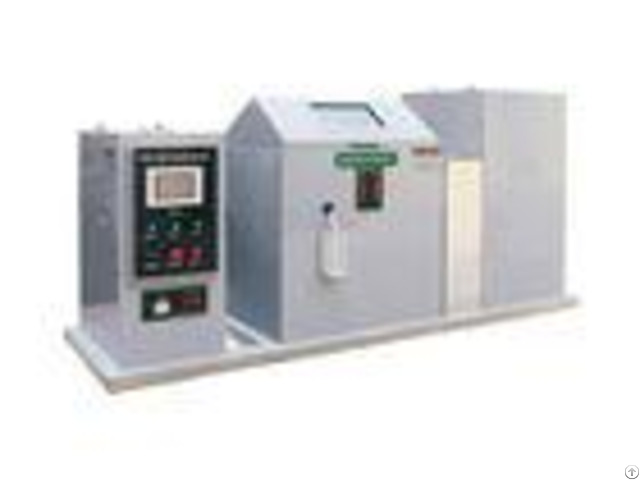

Salt Spray Corrosion Test Chamber Astm B117 With Automatic Water System - China

ASTM B117 Salt Spray Test Chamber 1 - Application Salt Spray Environmental Cyclic Corrosion Test Machine are designed to be flexible enough to comply with as many different CCT specifications as possible.

As standard they come with the ability to create 4 distinct climatic.

# Wetting mode; # Salt Spray mode; # Drying mode; # Controlled humidity mode; 2 - Technology Parameters - - - - Model | SM-Y-60D | SM-Y-90D | SM-Y-120D | SM-Y-160D | SM-Y-200D | Inner size | W | 600 | 900 | 1200 | 1600 | 2000 | D | 450 | 600 | 850 | 1000 | 1200 | H | 400 | 500 | 500 | 550 | 600 | Outer size | W | 1130 | 1460 | 2200 | 2600 | 3000 | D | 630 | 910 | 1200 | 1450 | 1650 | H | 1070 | 1280 | 1450 | 1550 | 1600 | Testing room volume(L) | 108 | 270 | 480 | 800 | 1440 | Brine tank capacity(L) | 15 | 25 | 40 | Max current(A) | 5 | 12 | 15 | 18 | 22 | Max Consumption Power(KW) | 1.5 | 2.5 | 3.5 | 5 | 7 | Power supply | AC220V, 50HZ | AC380V, 50HZ | Operating ambient temperature, humidity | <35, <85%RH | Testing room temperature | Brine test method(NSS ACSS)351/Erosion-resistan t testing method (CASS)501 | Pressure Pot Temperature | Brine test method(NSS ACSS)471/Erosion-resistan t testing method(CASS)631 | Brine solubility | 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium Chloride Solution per liter (CuCl2 2H2O) | PH | 6.5~7.2 3.0~3.2 | Compressed air pressure | 1.000.01kgf/cm2 | Spray quantity | 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average) | Inside and outside material | Imported corrosion resistant, anti-aging, high strength PVC board | Heater | Corrosion resistance U type titanium tube | Temperature controller | LED digital display temperature controller, touch screen controller | Spraying mode | Continuous, intermittent spraying | Defrosting device | No | Yes | Safety device | Over temperature protection switch, leakage protection, status warning lamp | - - - - Features *Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted.

Water level is insufficient warning to ensure that the use of safety.

*Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.

*Attached double over-temperature protection, over-temperature warning display, and cut off the heater power to ensure that the use of safety.

*Inlet temperature controller using a digital display, PID control, error of 0.1 C.

*Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.

*Spray tower attached to the conical dispersion, with oriented fog, the function of regulating the amount of fog and uniform loading amount of fog.

*The saturated air barrel using Henry's law, be heated humidification, and provide the required humidity of the laboratory.

Its made of SUS # 304 stainless steel insulation effect, with visual connectivity and drainage switch, in order to visually saturated air the barrel water level and cleaning.

*With automatic defogging device that can clearly watch the specimen in test chamber.

*Fog sealing sink, water seal to prevent fogging leakage.

*Laboratory sealing cover material for Taiwan imported PVC board, pneumatic cylinder automatic lifting way, easy to operate safe and reliable.

*The import timer using digital display, accurate timekeeping, H.

M.

seconds S can be segmented set any required test time, adjust the time range from 0.01 seconds to 9999 hours.

* Reagent supplement bottles hidden attached water level viewing window, easy to clean and should not be broken.

*Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.
